Magnetic Card Data Writer YME-1

Model NO.: YME_1
Delivery: EXW,FOB,CIF,FCA
Minimum order quantity: 1 set
Country of Origin: China

Quantity:

Product Description
Application Description

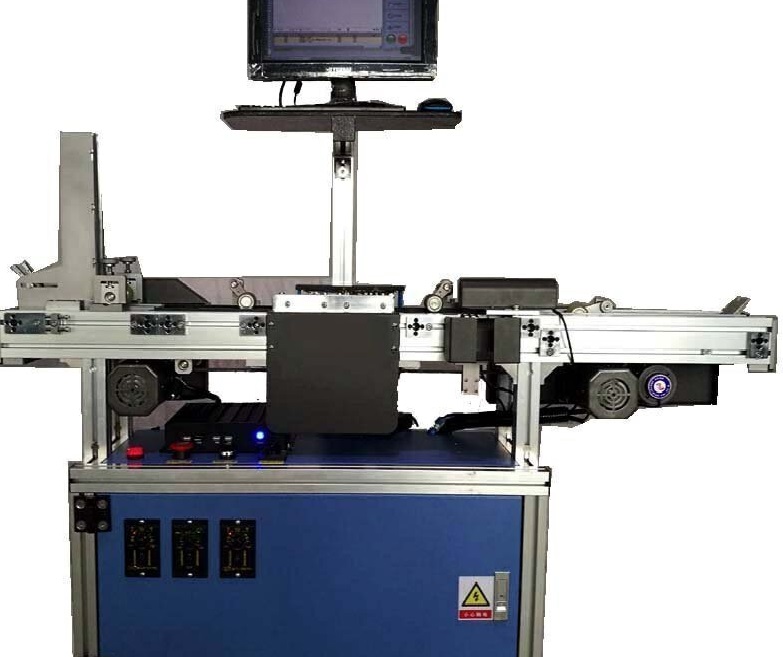

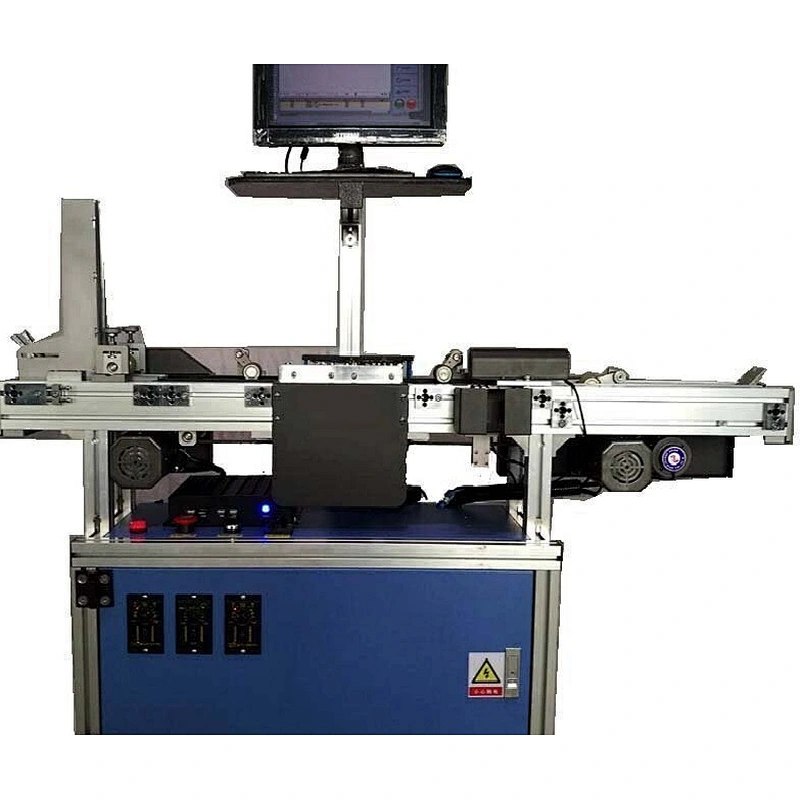

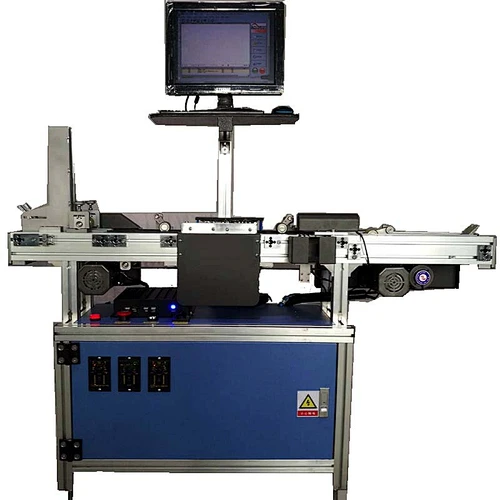

Speedy Magnetic Card Encoder/Magnetic Stripe Encoding Machine/Magnetic Card Data Writer YME-1

Speedy Magnetic Card Encoder YME-1 is designed to encode the magnetic stripe cards in a speedy and reliable way. It can encode 3 tracks at the same time with the maximum speed of nearly 10000 cards per hour. The magnetic writing unit mechanism is highly optimized to ensure the even speed of encoding and maximize the magnetic writing success rate. The encoder YME-1 is designed to encode almost all type of magnetic card, but it is not designed for encoding financial bank magnetic cards due to the technical limit.
Basic configuration

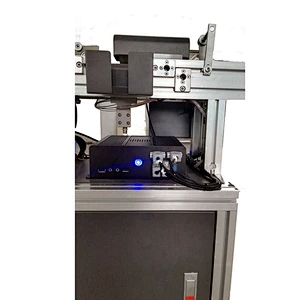

Card feeding magazine-Cardwriting/reading unit-card rejection box-Goodcard collection unit
Technical Parameter

Speed:8000-10000 cards/hour
Operating Program: Reliable AIO control software system for magnetic stripe data encoding.
MagneticRecord Density: 210 BPI for track 1; 75 or210BPI for track 2; and 210BPI for track3
ApplicableMagnetic tripe:HiCo/LoCo,300 oe-4000 oe, 3 tracks, 12.7mm wide
Applicable Card type: Standard magnetic stripe card

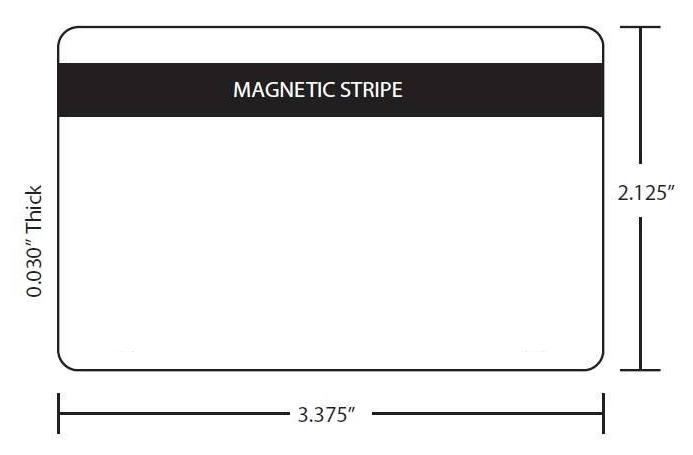

Card thickness: 0.5mm-0.8mm
Card length: 85.47mm-85.72mm
Card width: 54.03mm-53.92mm
Card corner radius: 3.18mm
Distance between magnetic stripe upper edge and card upper edge: 5mm

Power supply:AC220V, 50/60Hz
Power :1kW
NetWeight:113kg
Machine size: L1400×W400×1300mm
Package size &weight: 1 plywood case, GW 165KG, L1550×W550×1380mm
Magnetic writing head service lifetime: 200,000 to 300,000 times
Magnetic reading head service lifetime: 400,000 to 500,000 times.

Speedy Magnetic Card Encoder YME-1 is designed to encode the magnetic stripe cards in a speedy and reliable way. It can encode 3 tracks at the same time with the maximum speed of nearly 10000 cards per hour. The magnetic writing unit mechanism is highly optimized to ensure the even speed of encoding and maximize the magnetic writing success rate. The encoder YME-1 is designed to encode almost all type of magnetic card, but it is not designed for encoding financial bank magnetic cards due to the technical limit.
Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=dcugD-NAO5I
