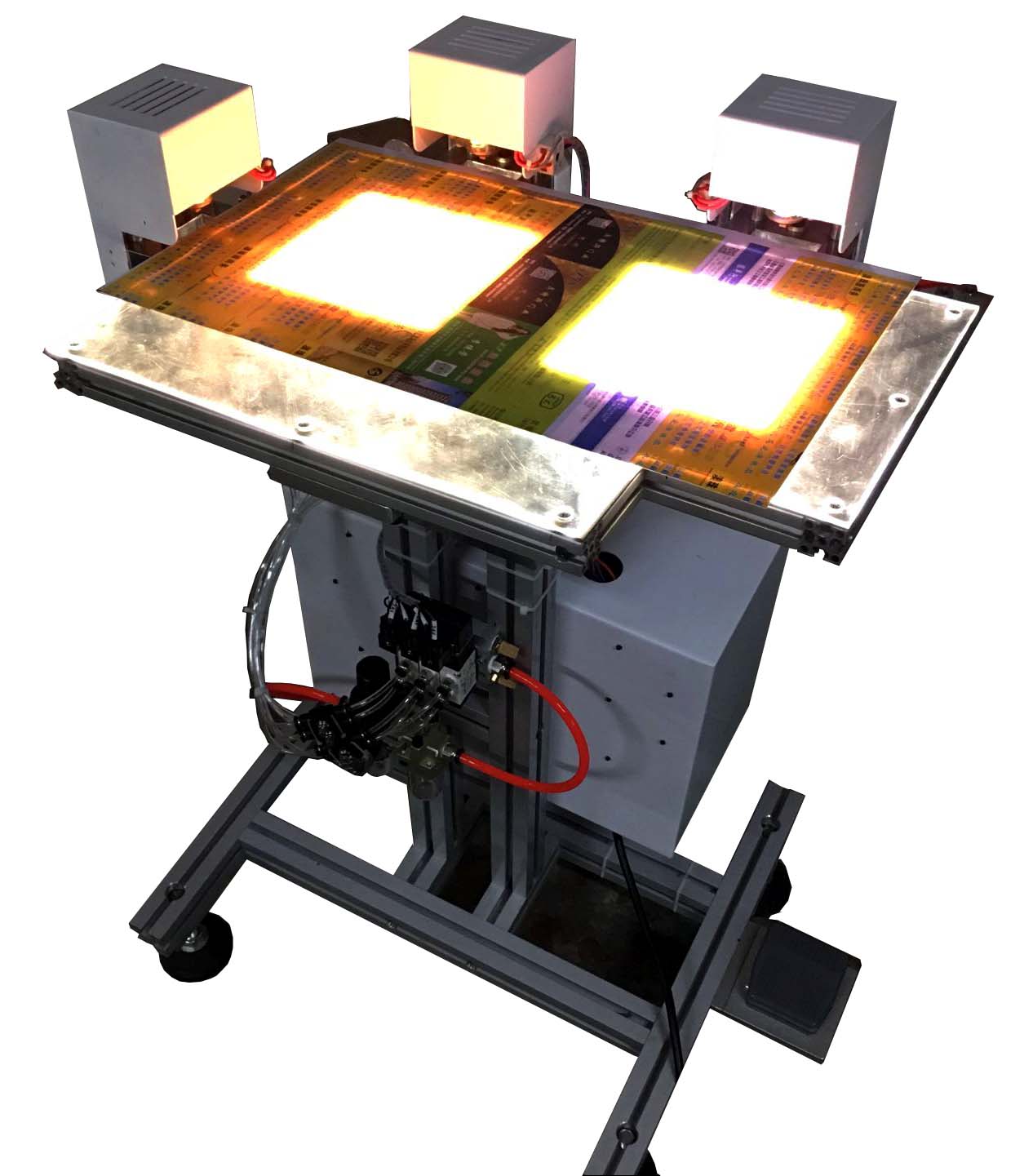

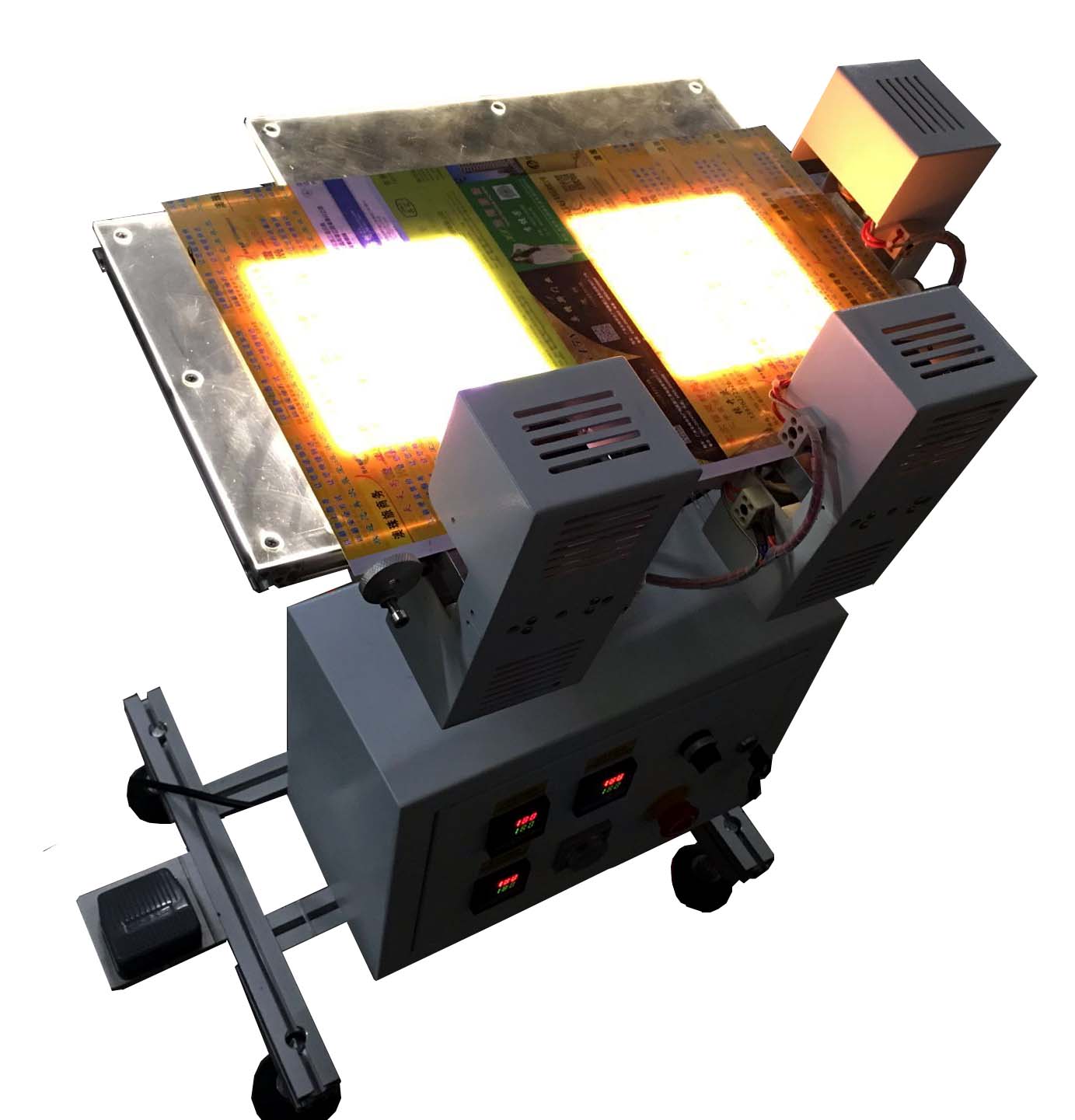

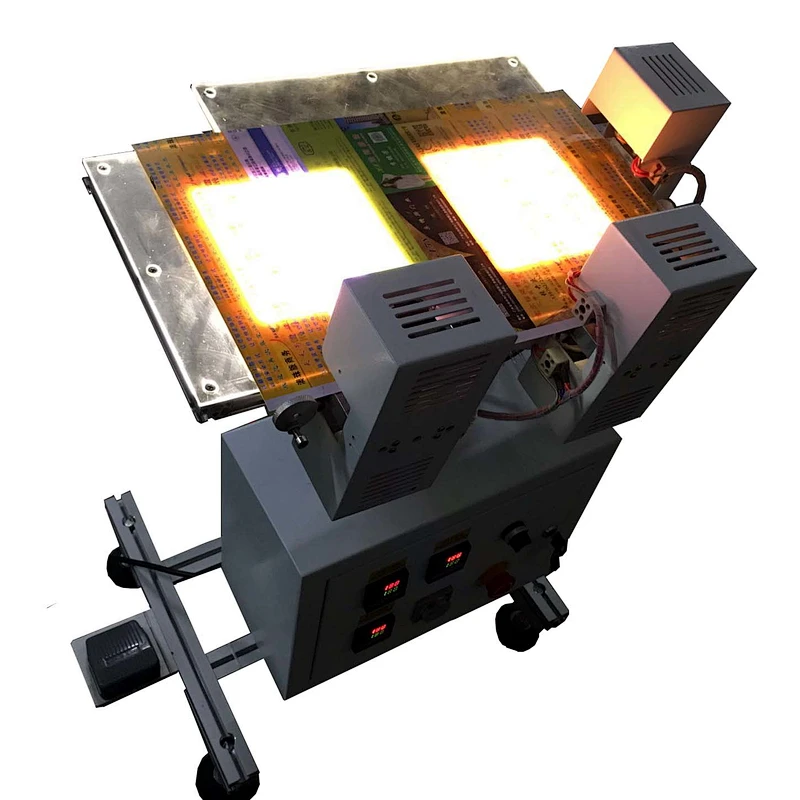

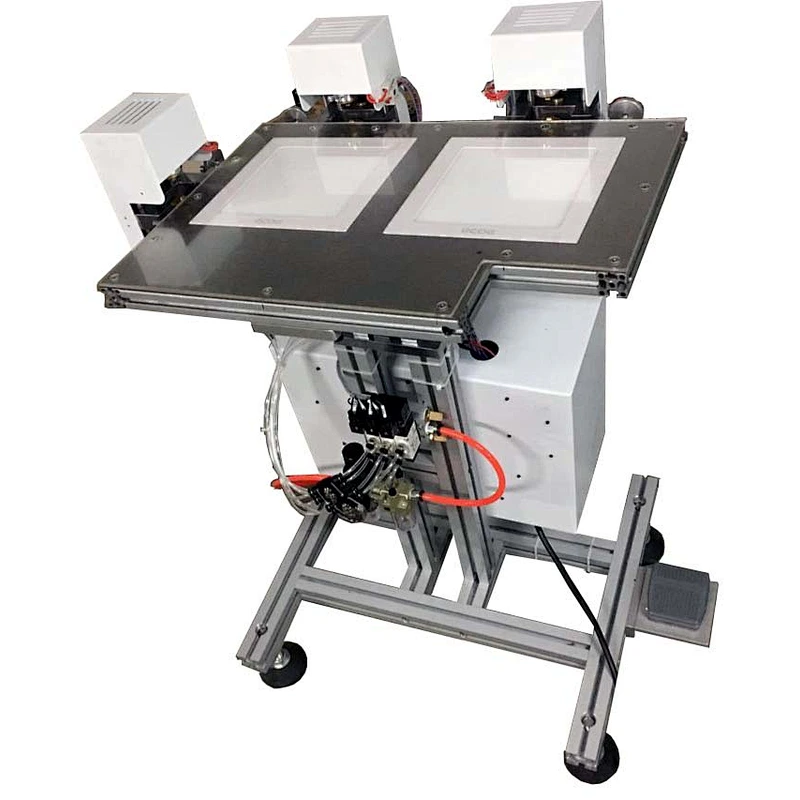

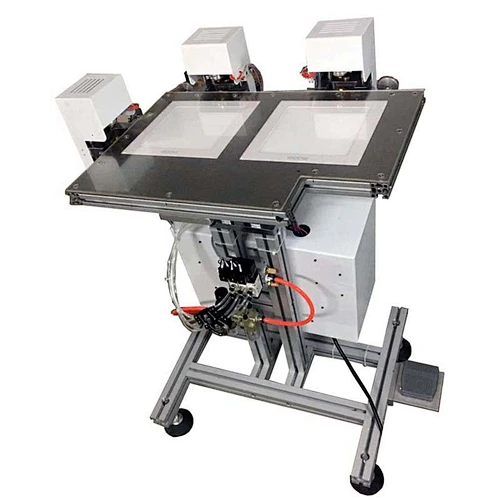

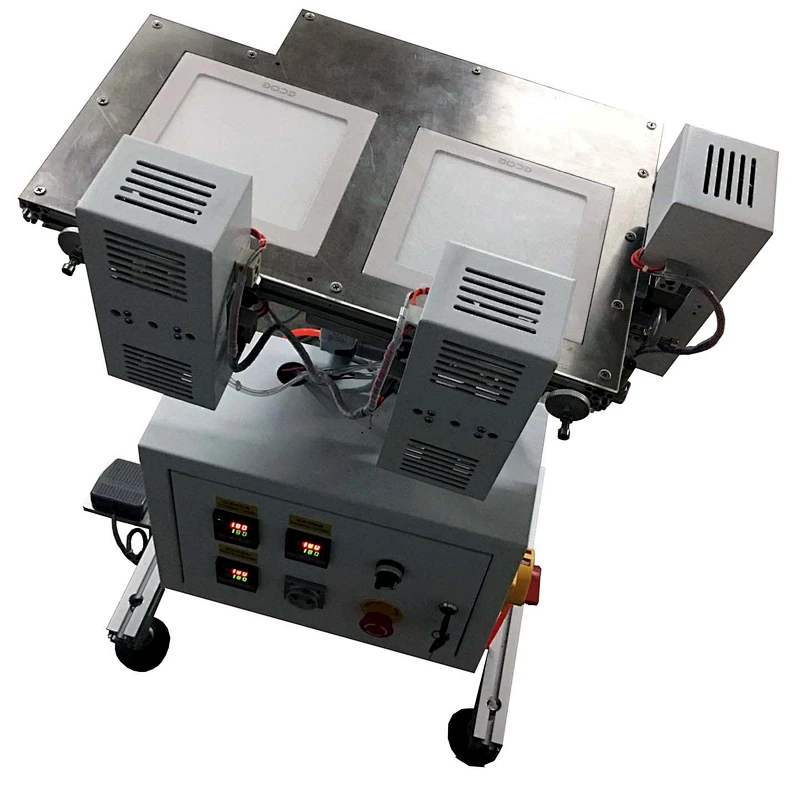

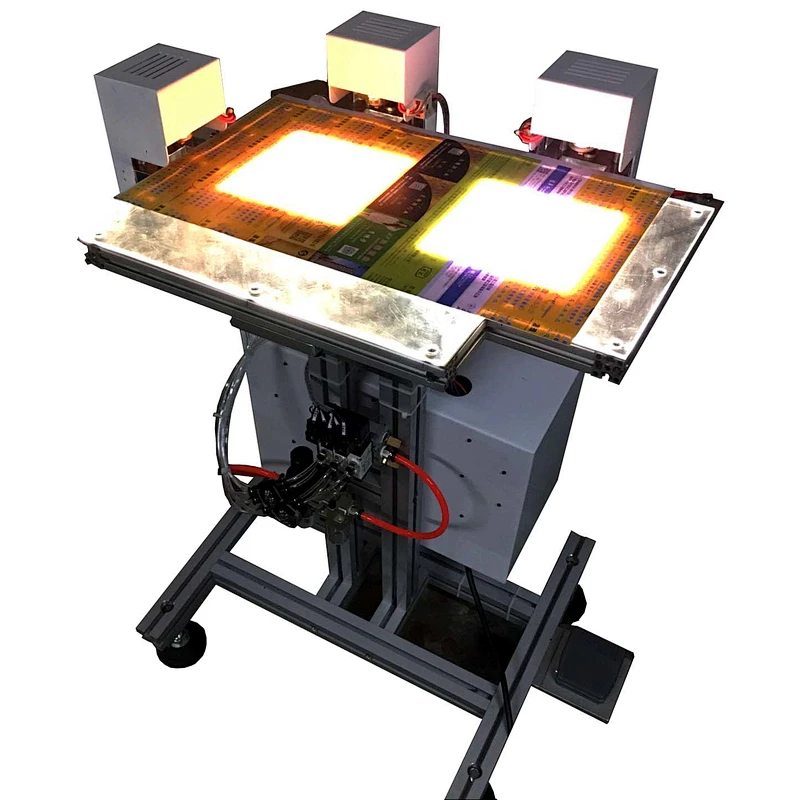

Manual Card Sheet Collator and Bonder YLB-1

Manual Card Sheet Collator and Bonder YLB-1

Model NO.: YLB-1
Delivery: EXW,FOB,FCA,CIF
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: about 20 Day

Quantity:

Product Description
Application Description

Manual Sheet Collating and Bonding Machine/Manual Card Sheet Collator and Bonder YLB-1
(card sheet bonding machine, card sheet collating machine, INLAY sheet bonding machine, manual card sheet collating and bonding machine, card machine, smart card machine)

General Description

Controlled by solid relay, the machine applies the imported temperature control system for temperature controlling, and time relay is used to control bonding time.
It can bond the materials as below：
PVC, ABS, PET, etc;

Note: different materials have different bonding parameters (like temperature, Time and Pressure)

Key Features:
1. The machine uses double cylinders for moving power, and the pressure is adjustable.
2. It is equipped with 3 bonding heads. The bonding position can be adjusted.
3. It applies electrical heater to heat up and uses the temperature controller to control the temperature.
4. Bonding time is controlled by time relay, and it is simple to set.

Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=ZpswVG7whl4
Technical Parameter

Power Supply	AC 220V/50 HZ	Weld Spot Quantity	2-3 (adjusted position)
Air Source	6 kg/c㎡(Dry)	Weight	Approx 50Kg
Total Power	2KW	Available Sheet	3X8、4X8、5X5
Temp Control Range	0-400℃	Operator	1 person
Temp Control Precision	±2℃	Dimension	L600×W500×H800mm
Capacity	800~1200 sheet/hour

Controlled by solid relay, the machine applies the imported temperature control system for temperature controlling, and time relay is used to control bonding time.
It can bond the materials as below：
PVC, ABS, PET, etc;
