Product Technical Specification
Plastic Card Laminator,Smart Card Pressing Machine,Card Laminating Machine YLL-26C 600*730
(Automatic tray moving from hot tower to cold tower after hot lamination finished, manual tray feeding and removing, template size 600*730mm for 6*8 layout or less size, 2 towers, 6 openings for each, 4 cylinders for each tower, PLC controlled, designed for smart card or RFID Card INLAY lamination)
Feature Description
Technical Parameters
1. PVC sheet layout: 6×8 5×5, 3×8, 4×8
2. Laminating template size and material: 600×730mm,aluminum alloy
3.Hydraulic cylinder number: 4 cylinders (diameter 125mm) for each tower
4. Daylightnumber/distance: 6 daylights, 2 tower/50mm
5. Control mode: PLC
6. Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)
7.Temperature control precision: +/-1℃
8. Heating temperature:≤200℃
9.Power: 23 KW (Maximum)
10. Power supply: AC380V 50/60HZ 3phase5 wires
11. Dimension: 2500mm×1200mm×1850mm
12.Gross weight: 3400 kg.

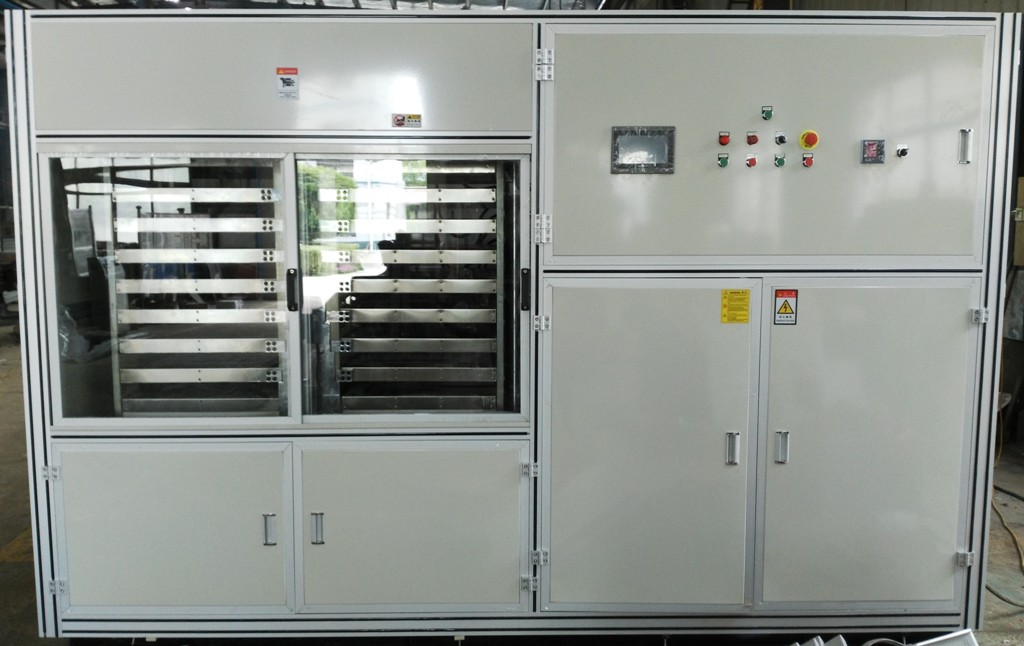

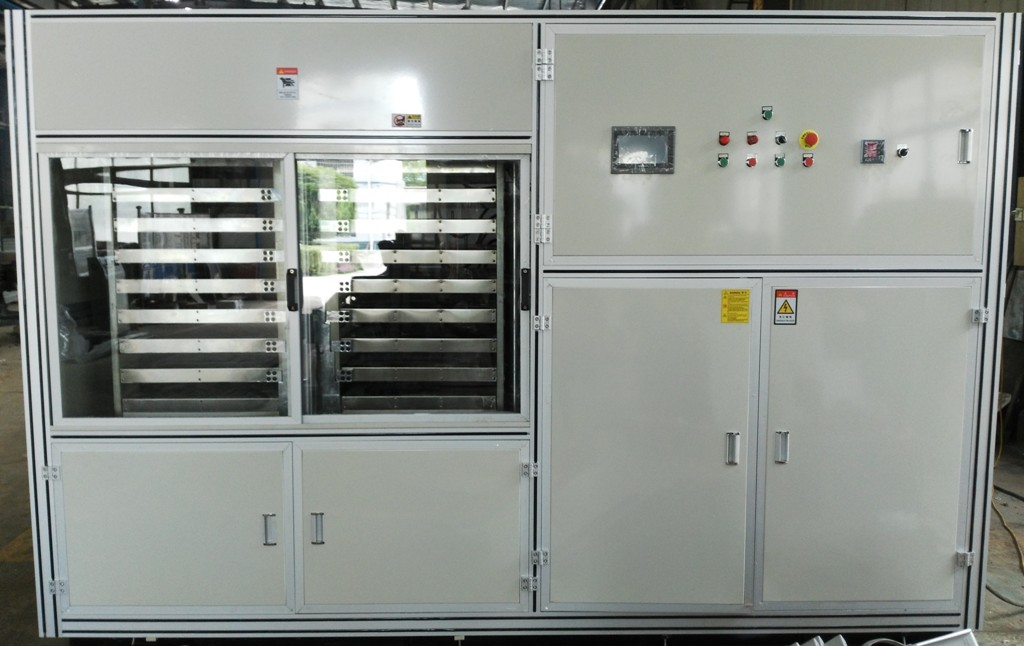

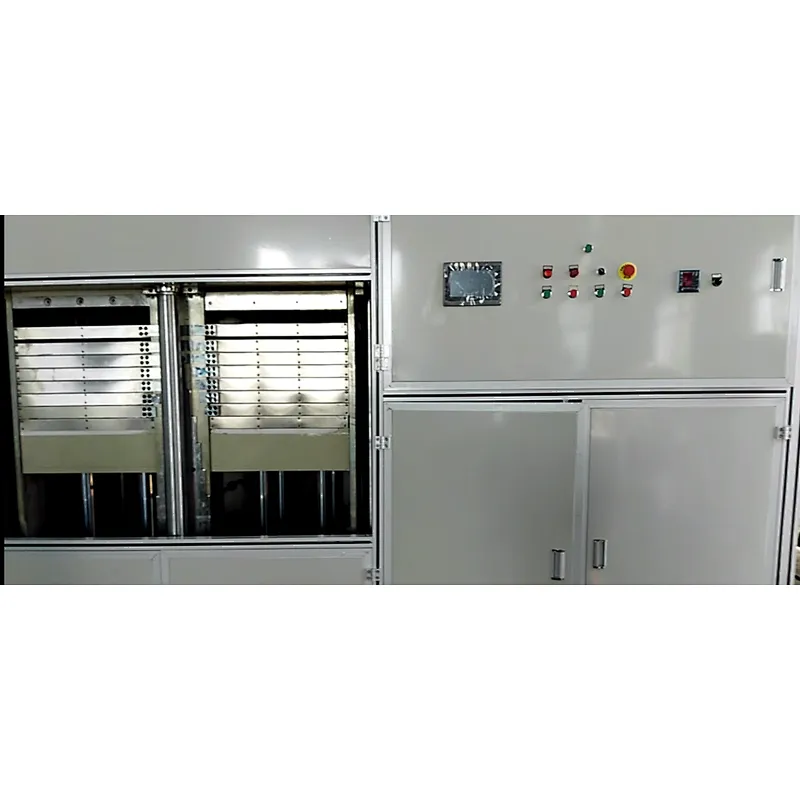

Plastic Card Laminator,Smart Card Pressing Machine,Card Laminating Machine YLL-26C 600*730
(Automatic tray moving from hot tower to cold tower after hot lamination finished, manual tray feeding and removing, template size 600*730mm for 6*8 layout or less size, 2 towers, 6 openings for each, 4 cylinders for each tower, PLC controlled, designed for smart card or RFID Card INLAY lamination)
Feature Description
- It is controlled by Programmable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;
- It can realize automatic tray moving from hot tower to cool tower after the hot lamination operation is finished.

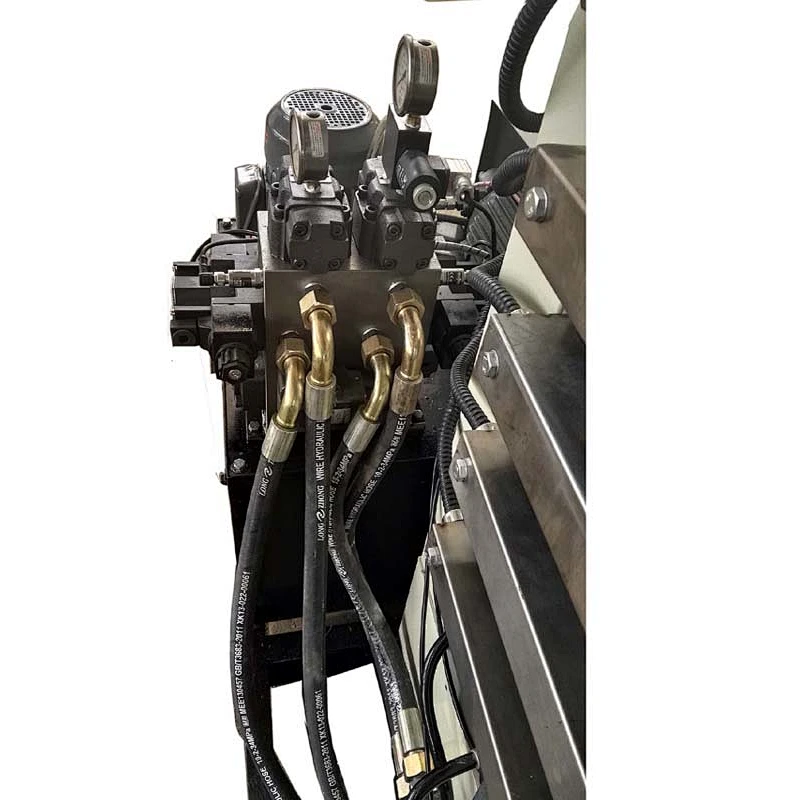

- pressuresupply is realized by two motors and two oil pumps for veryhigh reliability;
- Automaticlaminationparallelism adjustment is available.
- The pressure and temperature control module is applied to ensure higher control precision.
- If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
- The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.
Technical Parameters
1. PVC sheet layout: 6×8 5×5, 3×8, 4×8
2. Laminating template size and material: 600×730mm,aluminum alloy

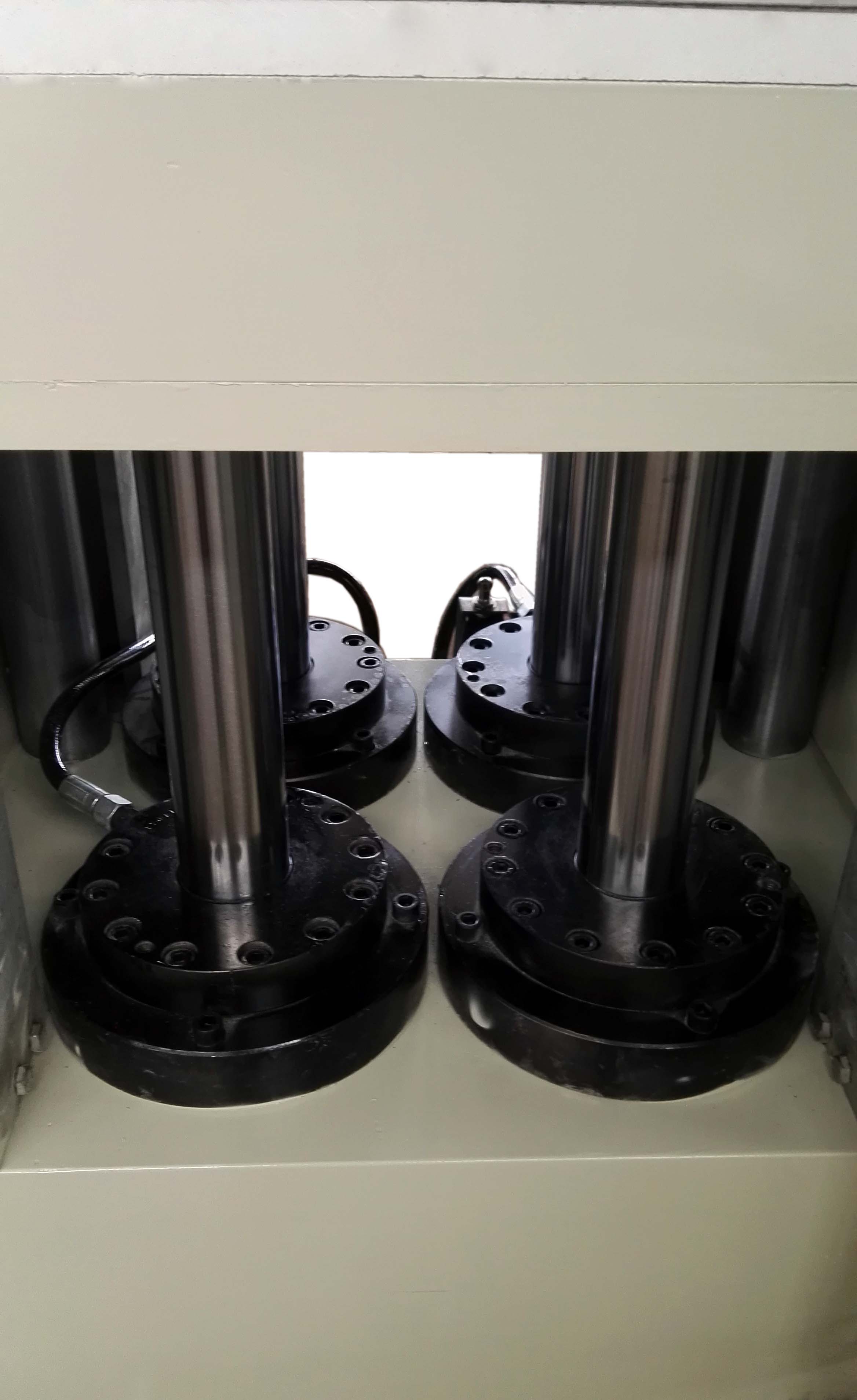

3.Hydraulic cylinder number: 4 cylinders (diameter 125mm) for each tower
4. Daylightnumber/distance: 6 daylights, 2 tower/50mm
5. Control mode: PLC
6. Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)
7.Temperature control precision: +/-1℃
8. Heating temperature:≤200℃
9.Power: 23 KW (Maximum)
10. Power supply: AC380V 50/60HZ 3phase5 wires
11. Dimension: 2500mm×1200mm×1850mm
12.Gross weight: 3400 kg.
