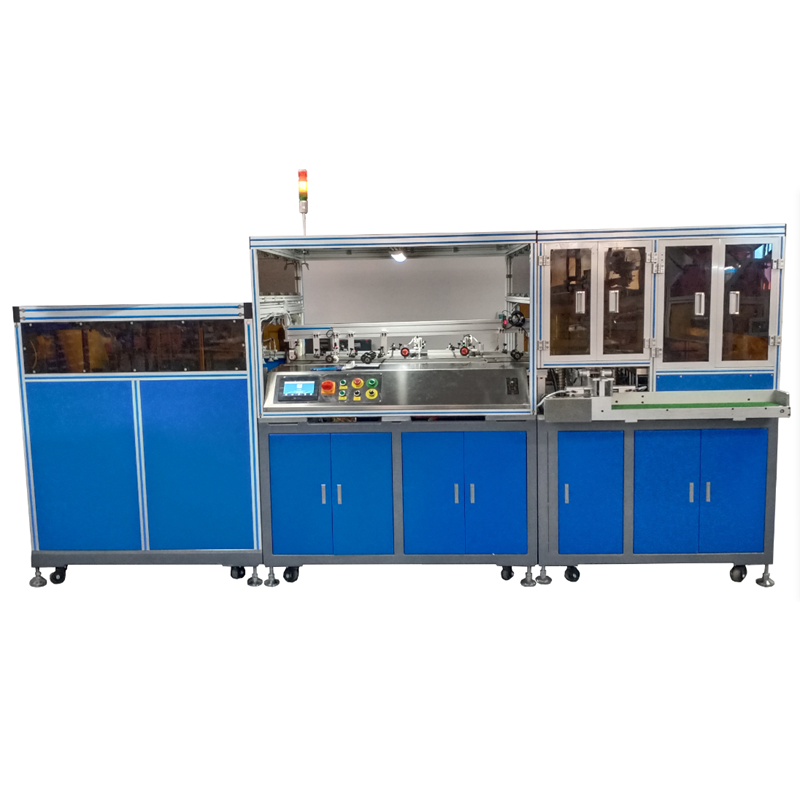

Poker Card Die Cutting Machine YLP-APC-1000

Poker Card Die Cutting Machine YLP-APC-1000

Model NO.: YLP-APC_1000
Delivery: EXW,FOB,CIF,FCA
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: About 45-50 Day

Quantity:

Product Description
Application Description

Full Automatic Poker Card Punching Machine/Full Auto Poker Playing Card Puncher/Poker Playing Card Die Cutter/Poker Card Die Cutting Machine YLP-APC-1000

This machine is designed for the purpose of automatic high-speed punching and sorting collection of poker playing cards. Comparing with other full automatic puncher model, this model can punch larger sheet size (maximum size 889 x 590 mm) with faster punching speed.
The machine adopts touch screen friendly man-machine interface operation, and high-power servo motor works as punching power. The high-sensitivity laser sensor cooperates with two sets of stepping systems for vertical search cursor positioning and servo motors for horizontal search cursor positioning and feeding. The two-direction positioning of X and Y axis in the plane is realized, and the punching accuracy is not affected by the material edge cutting accuracy.

The machine-Full Automatic Poker Card Punching Machine is also named as Full Automatic Poker Playing Card Puncher, Full Auto Poker Playing Card Die Cutter or Full Auto Poker Playing Card Die Cutting machine.

★ Functional features

With high sensitivity photoelectric sensor and high-quality imported servo system, the position parameters of each punching point can be adjusted with high precision.
It integrates such functions of full automatic sheet suction and feeding, precise sheet conveying and punching, waste discharge and punched card collection.
The high-power servo motor is used as punching power with low noise, stable power and adjustable punching speed. When punching cards of different thickness, the effect is better.
Both automatic search cursor positioning punching mode and side positioning punching mode are available, and the punching style is flexible and practical.
The PLC program control can realize automatic operation and can give an timely problem alarm and operation shutdown with the display of solution.

Note: Pls watch the machine video by click the YOUTUBE address:
https://youtu.be/krlx_EBx4vo

★ Main Technical Parameters

Power supply	AC 380V/50 HZ	Suitable material	PVC、ABS、paper (different molds matching different materials)
Power	10.5KW	Maximum punched sheet size	889 X 590mm
Air supply	6 kg/c㎡(no water)	Card collection width range	50~70 mm
Number of operators	1 person	Punched sheet thickness range	0.25~1.5 mm
Punching precise	±0.10mm	Counterpoint mode	Side positioning or cursor line alignment
Output	800~1000 big sheets /hour	Control mode	PLC program+ servo system
Weight	About 2000Kg	Dimensions	around L4000×W1200×H1750mm
