Contactless Card Chip Bonding Machine/RFID Card INLAY Sheet Chip Antenna Bonder/Automatic RFID Card Chip Welding Machine YCB-18
Feature Description

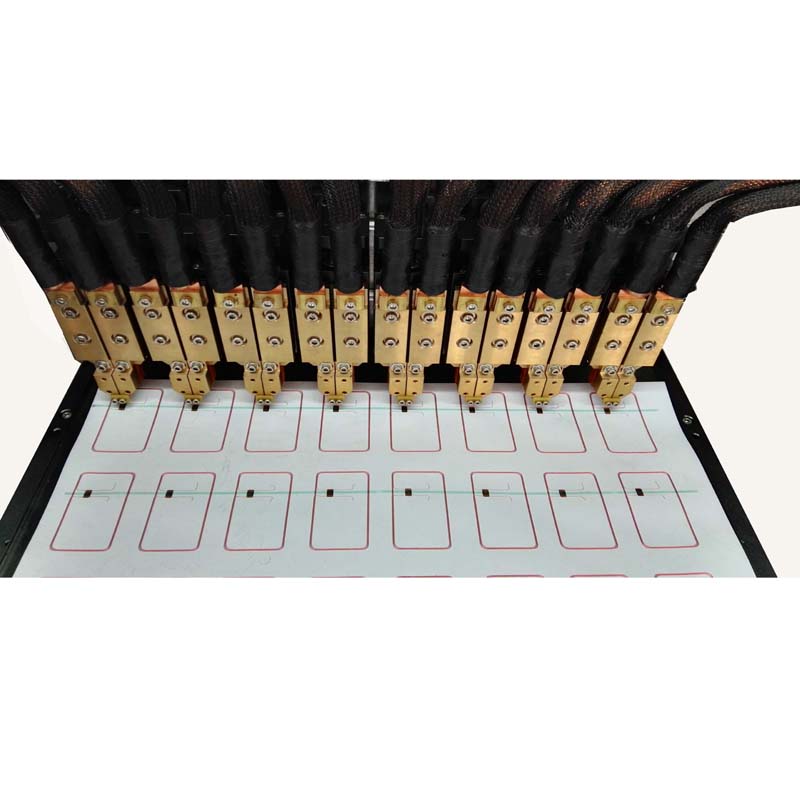

The machine is designed for bonding or welding the contactless card antennas and chips together in an automatic and speedy way.
- In order to ensure its reliability, the key components such as PLC, touch screen and servo system from Mitsubishi are applied inside.
- The lead screw by German REXROTH is applied to ensure precise motion precision.
- The bonding unit is dual-pulse high-frequency inverting welding system to ensure fast and quality welding, and the instant current output or instant voltage output can be freely selected.
- The bonding is fast in speed and good in quality.
As an indispensable machine of RFID card Inlay or Prelam sheet production line, Contactless Card Chip Bonding Machine YCB-18 is also known as named as RFID Card INLAY Sheet Chip Antenna Bonding or Welding Machine, Automatic Chip Wire Bonding Machine or Automatic RFID Card Chip Welder YCB-18.
Technical Parameters
- Speed: 7000-8000 units per hour
- Bonding head number:8 for 3*8 or 4*8 layout.
- Motion precision: 0.0125mm
- Mechanical adjustment: 0.01mm
- Compressed air: 6 kg/cm2
- Air Consumption: 80 L/min.
- Power:18KW
- Power supply: AC220V 50/60HZ 100A
- Weight: 1000 KG
- Dimension: L1300×W900×H1700mm
Note: Pls watch the machine video by click the YOUTUBE address:https://www.youtube.com/watch?v=NIHmMs6rGGA
