Product Technical Specification
Plastic Card Laminator/Smart Card Pressing Machine/Card Laminating Machine YLL-25C 420*520
(2 towers, 5 daylights for each tower, 4 small cylinders for each cylinder, Aluminum alloylamination template, PLC control, designed for RFID INLAY sheets or RFID chip card lamination)
2. Laminating template size and material:420×520mm,aluminum alloy

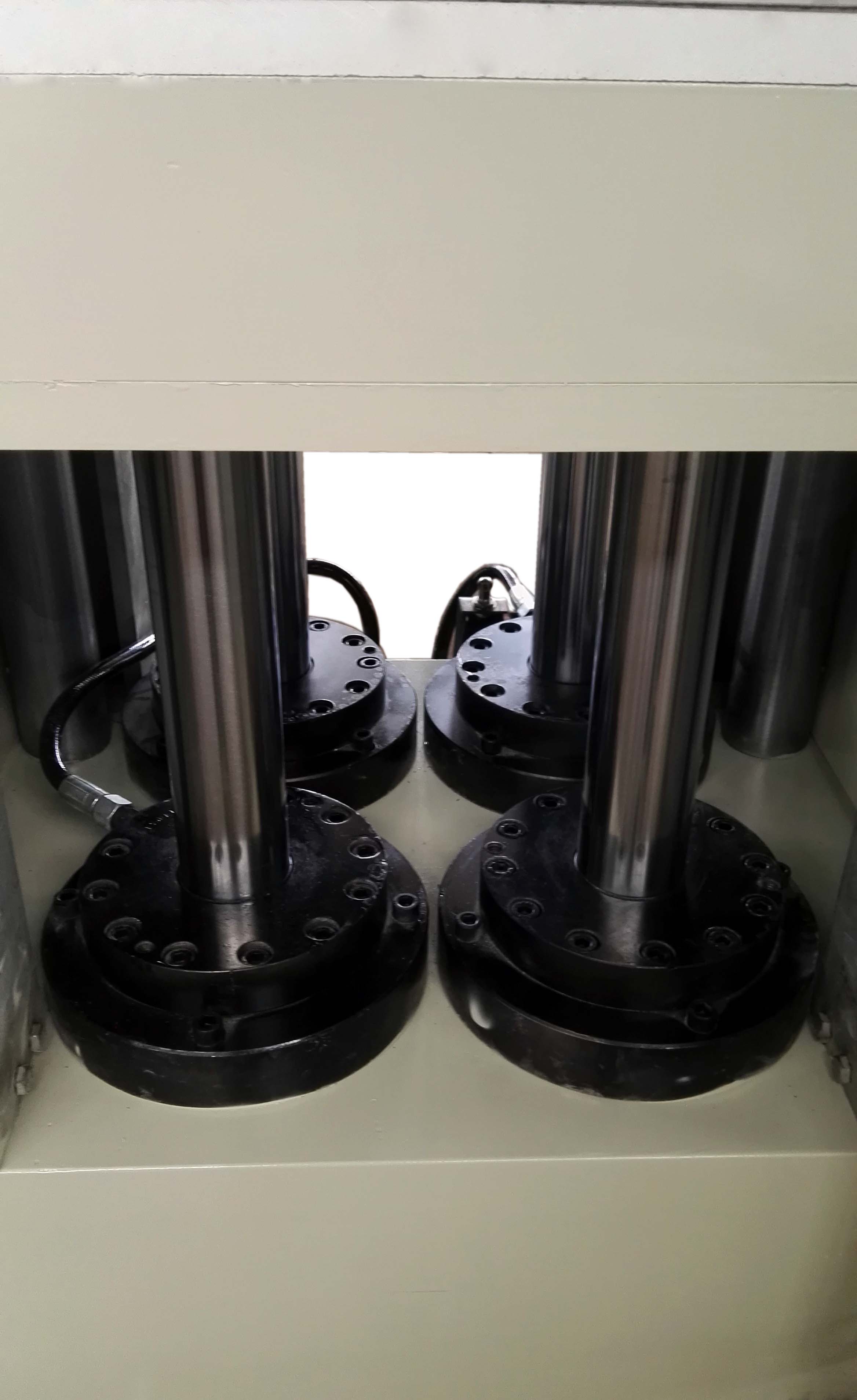

3.Hydraulic cylinder number: 4 small cylinders (diameter 60mm) for each tower
4. Daylightnumber/distance: 5 daylight 2 tower/50mm
5. Control mode: PLC
6. Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)
7.Temperature control precision: +/-1℃
8. Heating temperature:≤200℃
9.Power: 23 KW (Maximum)
10. Power supply: AC380V 50/60HZ 3phase5 wires
11. Dimension: 2500mm×1200mm×1800mm
12.Gross weight: 3100 kg.
Plastic Card Laminator is also named as Plastic Card Press, Smart Card Pressing Machine or Card Laminating Machine.
(2 towers, 5 daylights for each tower, 4 small cylinders for each cylinder, Aluminum alloylamination template, PLC control, designed for RFID INLAY sheets or RFID chip card lamination)
Feature Description
- It is controlled by Programmable logic controller with intelligent man-machine interface touch screen for easy operation. Many types of lamination parameters can be automatically saved;
- It is specially designed for massive lamination of various cards including contactless RFID chip cards and RFID INLAY sheets.
- Automaticlaminationparallelism adjustment is available.
- The pressure and temperature control module is applied to ensure higher control precision.
- If the working laminator power supply is accidentally off, the operator can open the laminating plates manually to minimize unnecessary losses;
- The heating tower is installed with external thermal insulation housing to ensure efficient and environmentally friendly lamination.
Technical Parameters
1. PVC sheet layout: 5×5, 3×8, 4×82. Laminating template size and material:420×520mm,aluminum alloy
3.Hydraulic cylinder number: 4 small cylinders (diameter 60mm) for each tower
4. Daylightnumber/distance: 5 daylight 2 tower/50mm
5. Control mode: PLC
6. Pressure precision and range: +/-0.3Mpa, 0.3-16Mpa (adjustable)
7.Temperature control precision: +/-1℃
8. Heating temperature:≤200℃
9.Power: 23 KW (Maximum)
10. Power supply: AC380V 50/60HZ 3phase5 wires
11. Dimension: 2500mm×1200mm×1800mm
12.Gross weight: 3100 kg.
Plastic Card Laminator is also named as Plastic Card Press, Smart Card Pressing Machine or Card Laminating Machine.
