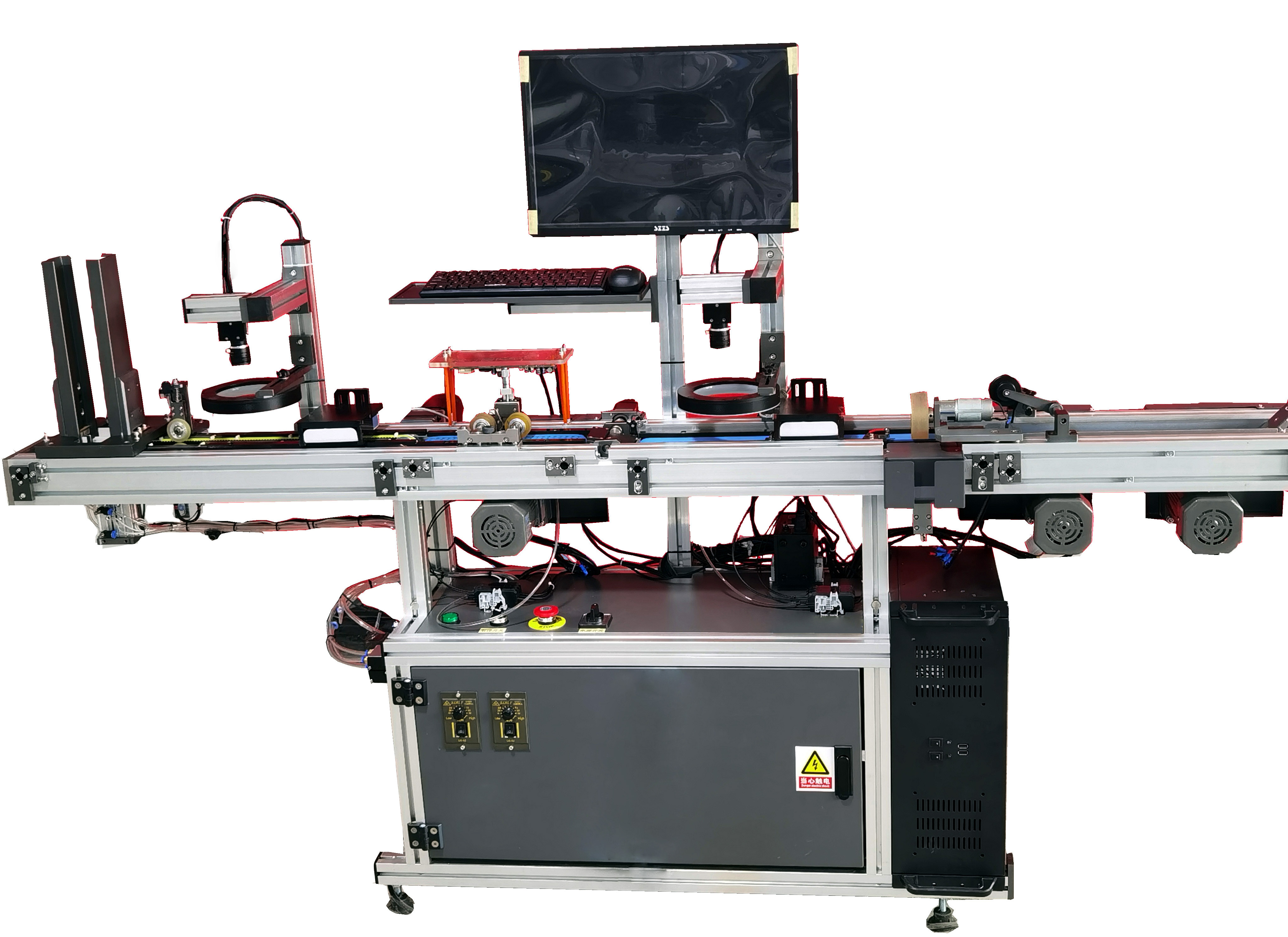

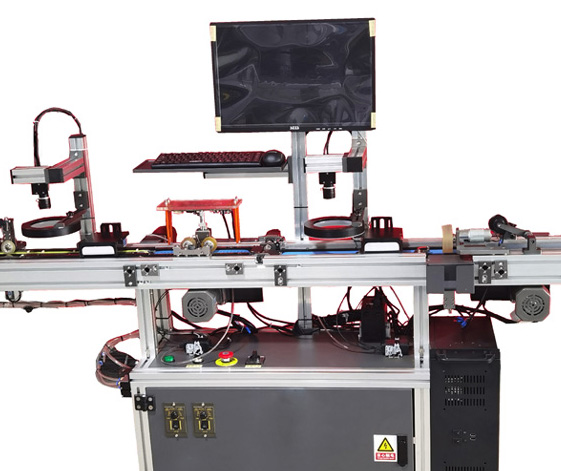

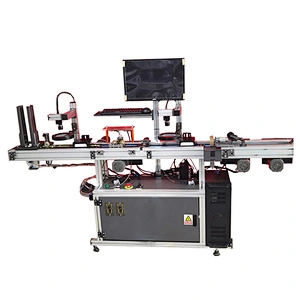

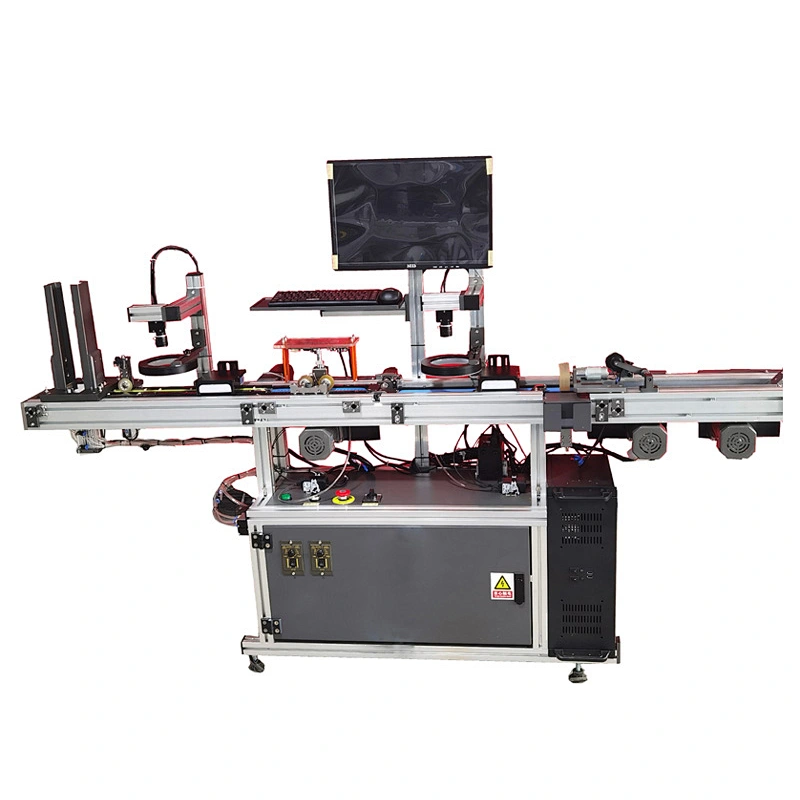

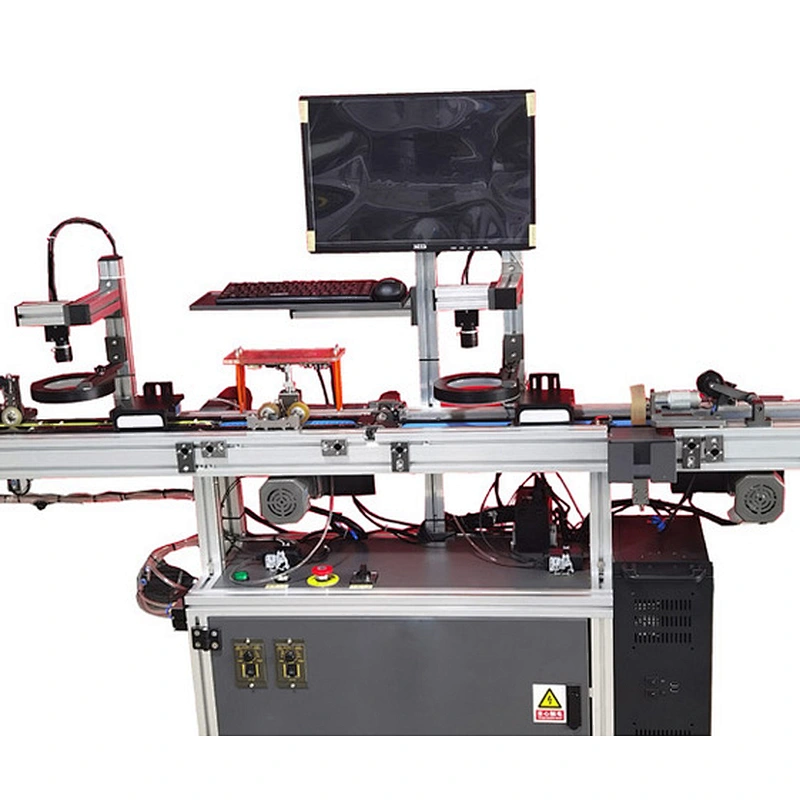

Smart Card Quality Control Machine YDPV-2

Smart Card Data Personalization and Verification Machine /Smart Card Data Personalization Machine/Smart Card Data Inspection Machine/Smart Card Data Verification Machine/Smart Card Quality Control Machine YDPV-2


Smart Card Data Personalization and Verification Machine YDPV-2 is designed to read and write RFID chip and magnetic stripe in the smart cards with the OCR inspection units and card turn-over unit. It can also used to carry out the work of  data comparison and verification on RFID card chip data, card surface data and magnetic stripe data of smart card. Laser engraving unit is optical module.  It can realize the following data processing functions for smart cards:

1. RFID card electrical performance test (check whether chip circuit inside RFID card good or not);
2. HF/LF RFID card chip reading, chip writing or secret key process (Mifare S50, S70, Ultralight, Ultralight-C, Mifare Plus, Ntag203, Ntag213, Ntag216, Icode-2, FM11RF005M, EM4100(ID), ATA5577, EM4305);
3.  Write or read Magnetic stripe (HICO/LOCO,only for non-financial cards);
4. Card quality control function (checkwhether the finished cards are good or not by means of OCR surface data (number/barcode/QR code) reading +RFID card chip data reading +magnetic stripe data reading to compare with the source data file) ;
5. Laser engraving unit optional module, which can realize laser engraving work on card surface.
6. Basic configuration includes:
7. Card feeding magazine(CR80 standard card)→multi-card feeding check unit→OCR visual inspection unit #1→RFID card encoding unit #1 →magnetic stripe encoding unit→Card flipper→OCR visual inspection unit #2→RFID card reading unit #2→Bad Card Rejection Unit →Good Card Collection magazine.
8. Note:
9. The existing magnetic stripe encoding unit installed on the line can process all standard magnetic card (HiCo/LoCo,300oe-4000oe, 3 tracks, 12.7mm wide, CR80 card),  but the magnetic cards encoded by the existing Chinese magnetic encoding module cannot fully meet the strict specification of ISO 7811 for high-end financial bank cards.
10. The card perso machine-Smart Card Data Personalization and Verification Machine YDPV-2 is also known or named as Smart Card Data Personalization Machine, Smart Card Data Inspection Machine, Smart Card Data Verification Machine or Smart Card Quality Control Machine YDPV-2.

Technical Parameter
1. Device size: L2100*W550*H1500mm;
2. Power supply: AC220,50/60 Hz;
3. Equipment airsource: 6.5Kg/CM2, 30L/M;
4. Control mode: industrial control machine +PLC;
5.GW: around 120KG.
6. Speed: 3500-6000 cards/hour
