Product Technical Specification
PlasticCard Hot Stamping Numbering Machine/CardDented Number Stamping Machine/Card Concave Code Gilding Machine/Card Sunken Number Bronzing Machine YHSN-1

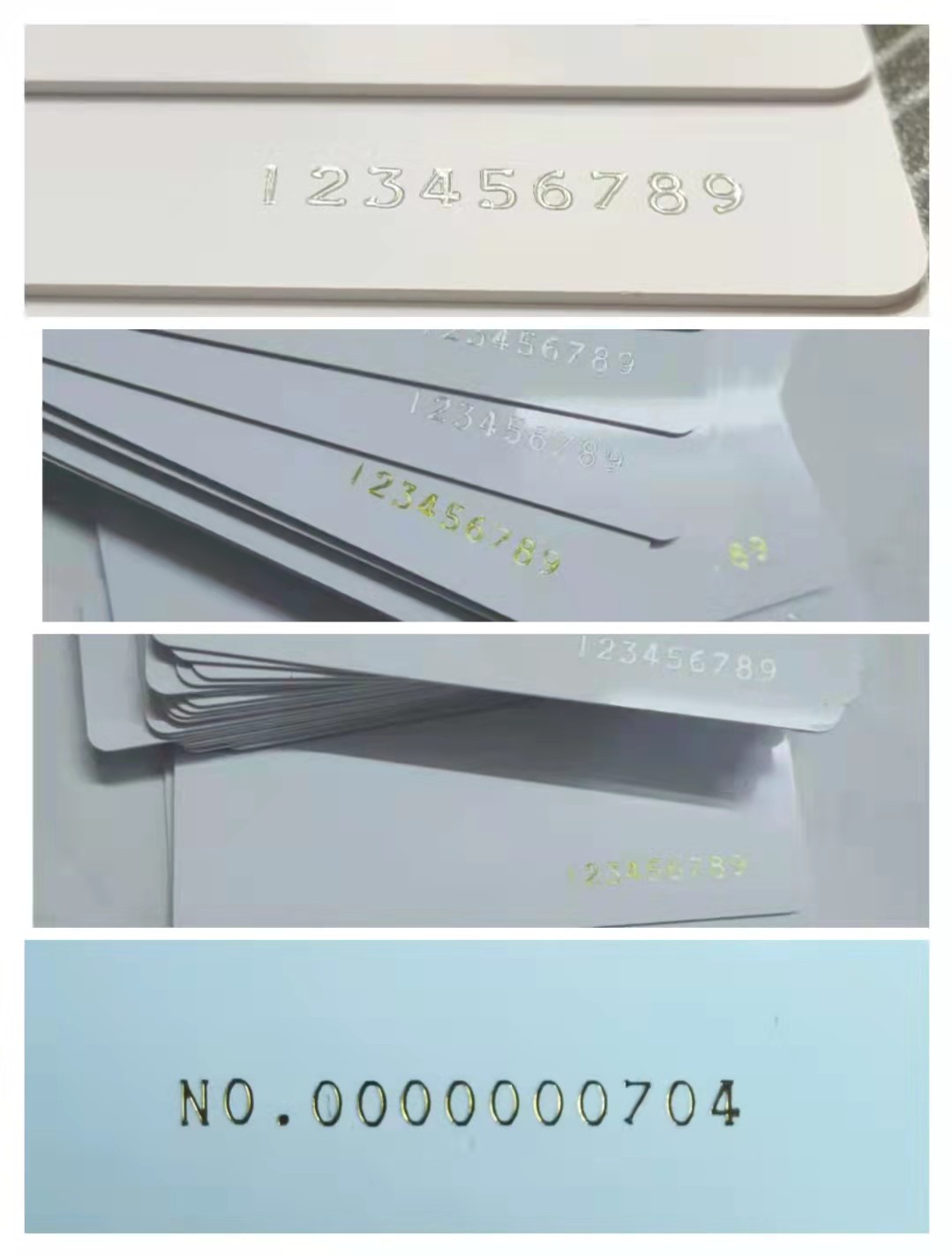

This machine is specially designed for hot stamping the single-line sequential number on the card surface. The processed cards have no embossing effect. It can only show the dented serial number or fixed number on the card surface. It is controlled by PLC with friendly man-machine interface. It features high speed, good stamping quality and precise location.
Feature Description
Technical Parameters
1. Power supply:AC220V, 50/60 Hz
2.Dimensions (LxWxH):1200×820×1580mm
3.Weight: around 390 kg
4. Control mode: PLC+ stepping system
5. Compressed air: 6 KG/cm2 30L/min
6. Speed: 3500 cards per hour
7. Material: CR80 cards 0.50-0.85 mm thick
8. Power: 2.5KW
9. Position accuracy: ±0.2mm
10. Stamping temperature range: 120-250 centigrade degrees
11. Stamping area on card surface: no more than 48mm in card width direction and no more than 80mm in card length direction.
12. Number length: 3 fixed characters (like VIP/NO.)+10 number digits
PlasticCard Hot Stamping Numbering Machine/CardDented Number Stamping Machine/Card Concave Code Gilding Machine/Card Sunken Number Bronzing Machine YHSN-1
This machine is specially designed for hot stamping the single-line sequential number on the card surface. The processed cards have no embossing effect. It can only show the dented serial number or fixed number on the card surface. It is controlled by PLC with friendly man-machine interface. It features high speed, good stamping quality and precise location.
Feature Description
- It applies high-quality servo motor as operation power to ensure good stability and quality stamping. Running speed and pressing stroke are adjustable.
- PLC control is adopted for reliable automatic running, and the machine will halt and alarm automatically in case of no card or failure occurring.
- High-quality temperature controller is used to control the hot stamping temperature for better stamping quality.
- The stamping head is made of high-quality mould steel which can ensure longer service life.
Technical Parameters
1. Power supply:AC220V, 50/60 Hz
2.Dimensions (LxWxH):1200×820×1580mm
3.Weight: around 390 kg
4. Control mode: PLC+ stepping system
5. Compressed air: 6 KG/cm2 30L/min
6. Speed: 3500 cards per hour
7. Material: CR80 cards 0.50-0.85 mm thick
8. Power: 2.5KW
9. Position accuracy: ±0.2mm
10. Stamping temperature range: 120-250 centigrade degrees
11. Stamping area on card surface: no more than 48mm in card width direction and no more than 80mm in card length direction.
12. Number length: 3 fixed characters (like VIP/NO.)+10 number digits
This machine is specially designed for hot stamping the single-line sequential number on the card surface. The processed cards have no embossing effect. It can only show the dented serial number or fixed number on the card surface. It is controlled by PLC with friendly man-machine interface. It features high speed, good stamping quality and precise location.
Pls watch the machine video by click the YOUTUBE address:
https://youtu.be/LFbNekZJ_gM
Pls watch the machine video by click the YOUTUBE address:
https://youtu.be/LFbNekZJ_gM
