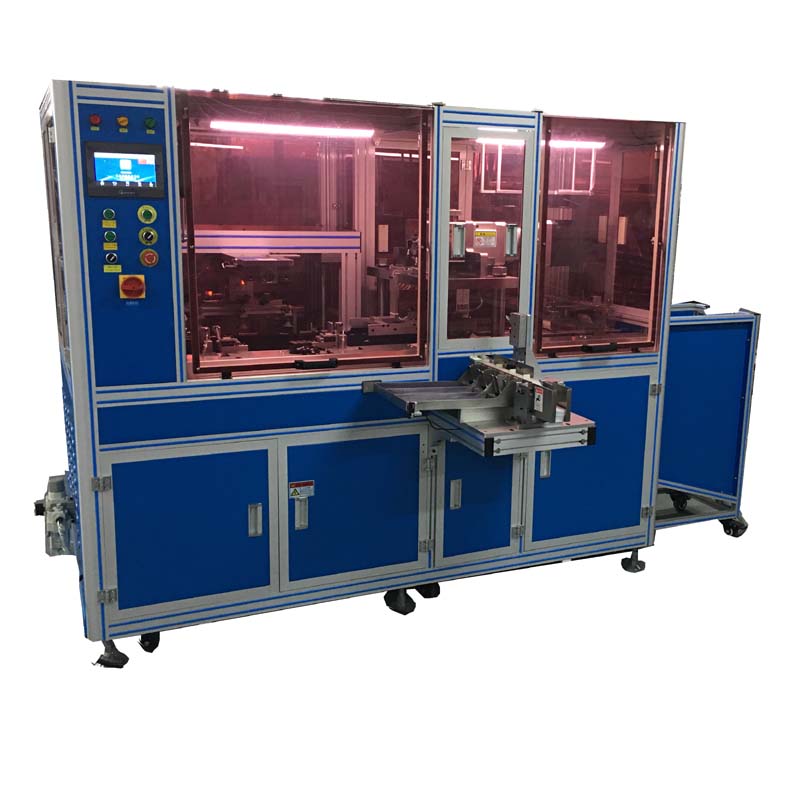

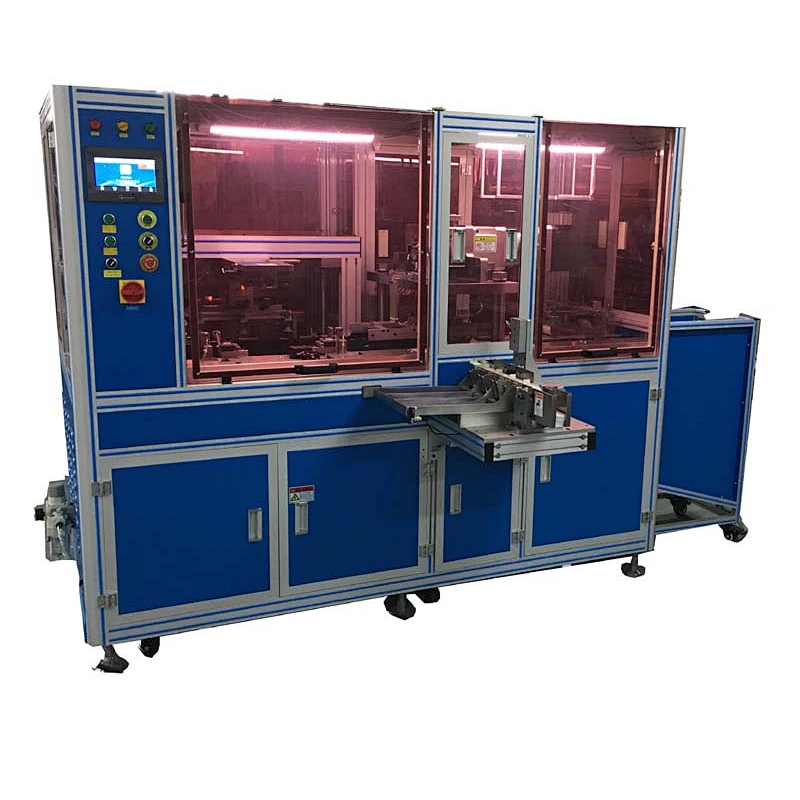

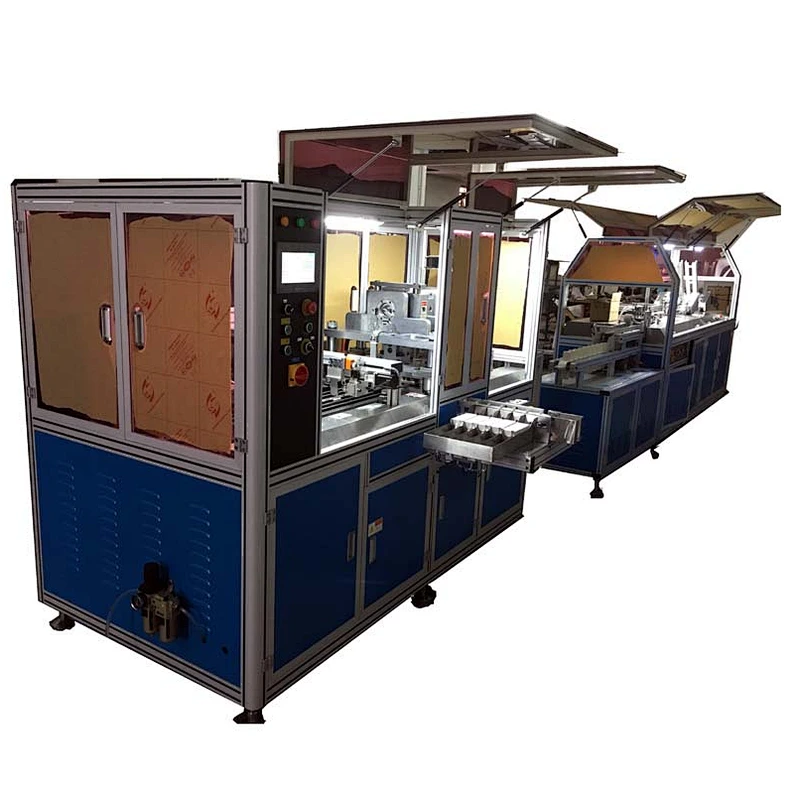

Plastic Card Punching and Sorting Machine YLPS-1

Plastic Card Punching and Sorting Machine YLPS-1

Model NO.: YLPS_1
Delivery: EXW,FOB,CIF,CFR,FCA
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: 30-45 Days

Quantity:

Product Description
Application Description

Product Technical Specification

Plastic Card Punching and Sorting Machine/Plastic Card Puncher and Sorter/Card Punching Machine/Card Die Cutter/Card Die Cutting Machine YLPS-1
( card puncher, plastic card puncher and sorter, card die cutter, card punching machine, card machine, card production machine)

Feature Description
It is applied for punching the laminated plastic sheets into ISO CR80 cards in a speedy and precise way. It has smart card sorting system that can collect the punched cards into different magazines as per the specific setting by touch screen.

It applies high sensitive photoelectrical sensors and quality rolling guide screw in order to ensure the machine stability;
Powerful hydraulic system is applied as punching power. It features low noise, reliable performance and perfect punching effect. The pressure and speed is adjustable in punching different thick cards.
The punching mould is specially designed and applies high-quality mould steel to ensure perfect punching result and long-time service life.

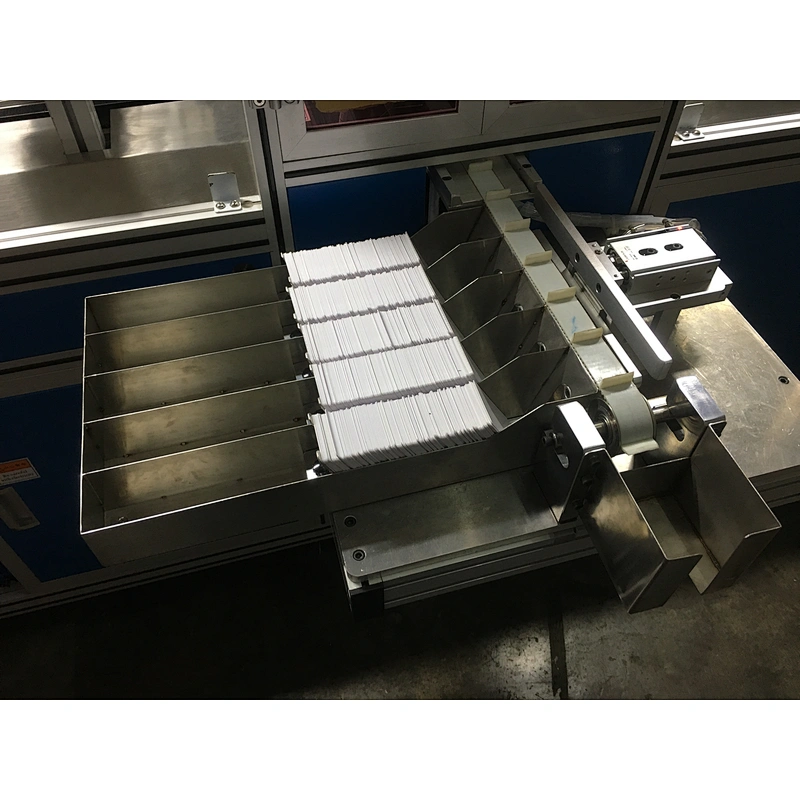

It has reliable automatic card sorting system. It can send one single card into one independent channel. It can also send the cards of the same rank into one independent channel. The sorting mode can be set easily by touch screen.

Plastic Card Punching and Sorting Machine YLPS-1 is also known or named as Card Puncher and Sorter, Card Punching Machine, Card Die Cutter or Card Die Cutting Machine YLPS-1.
Technical Parameters
1. Max. Speed: 8000-16000 cards per hour
2. Applicable PVC sheet layout: 3×8, 4×8, 5×5
3. Applicable material: PVC, ABS, PETG and paper
4. Weight: around 1000 Kg
5. Power supply: AC380V 50/60HZ
6. General power: 3.5 KW
7. Compressed air: 6KG/CM²(dry), 85L/min
8. Punch precision: ±0.1mm
9. Control mode: PLC + Servo system
9. Dimension: 3420×850×1520mm

It is applied for punching the laminated plastic sheets into ISO CR80 cards in a speedy and precise way. It has smart card sorting system that can collect the punched cards into different magazines as per the specific setting by touch screen.
