Product Technical Specification

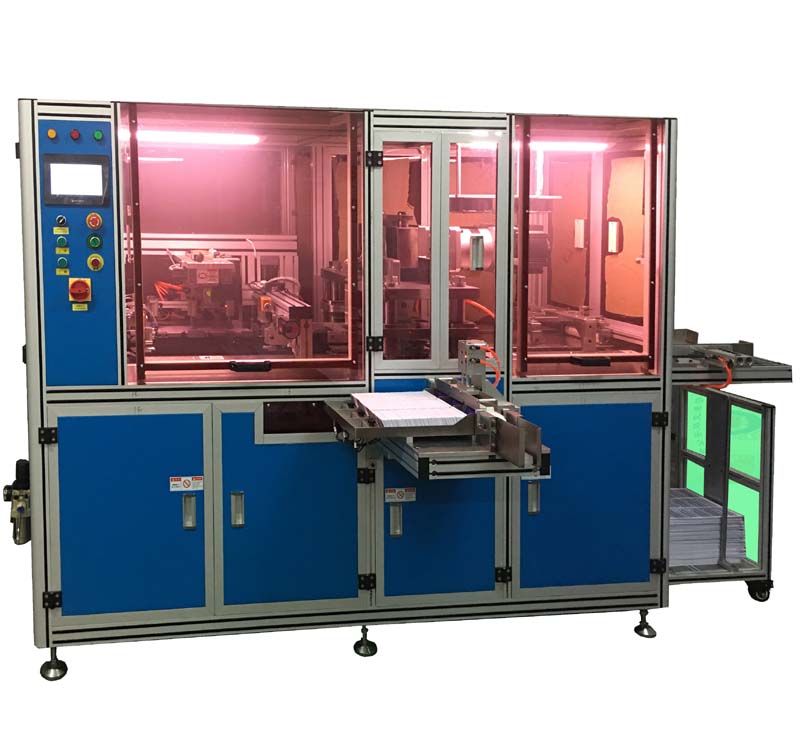

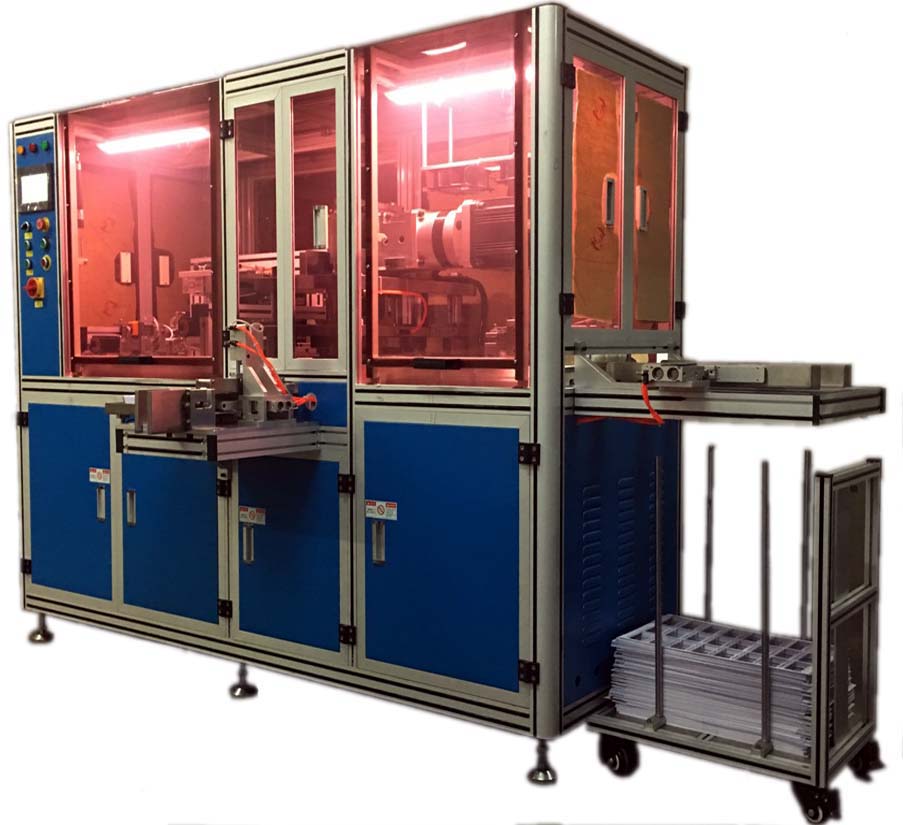

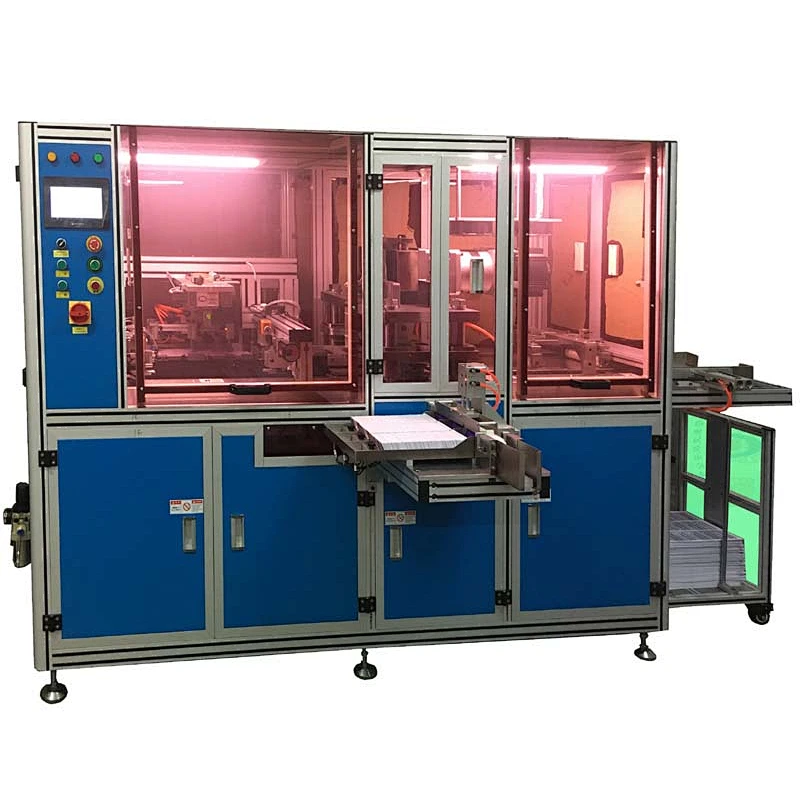

Full Automatic Plastic Card Puncher/Full Auto Plastic Card Puncher/Full Auto Card Punching Machine/Card Die Cutter/Card Die Cutting Machine YLFP-1
(Plastic card sheet puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine)
Feature Description

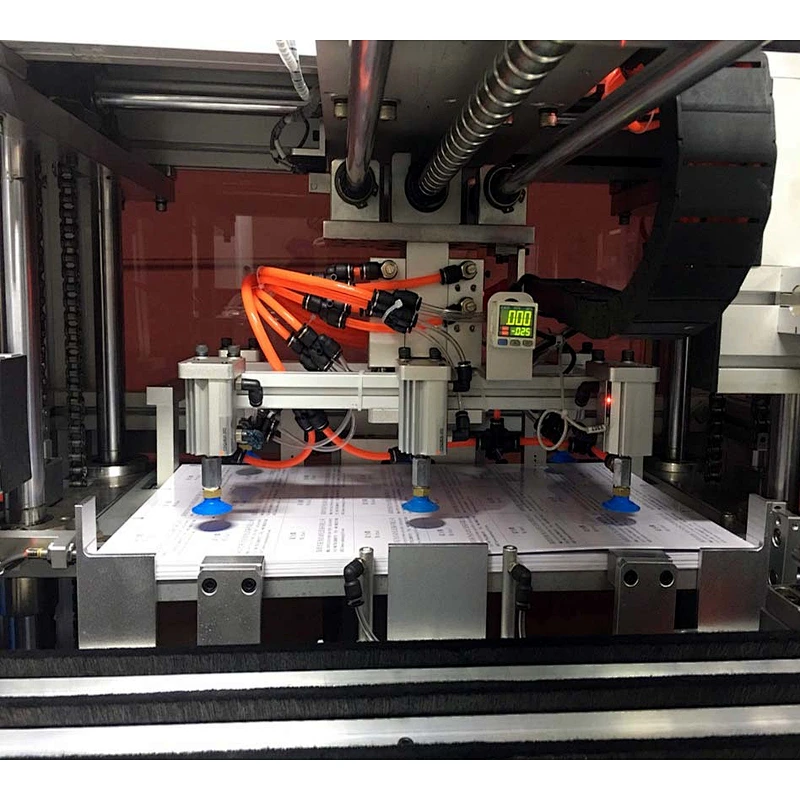

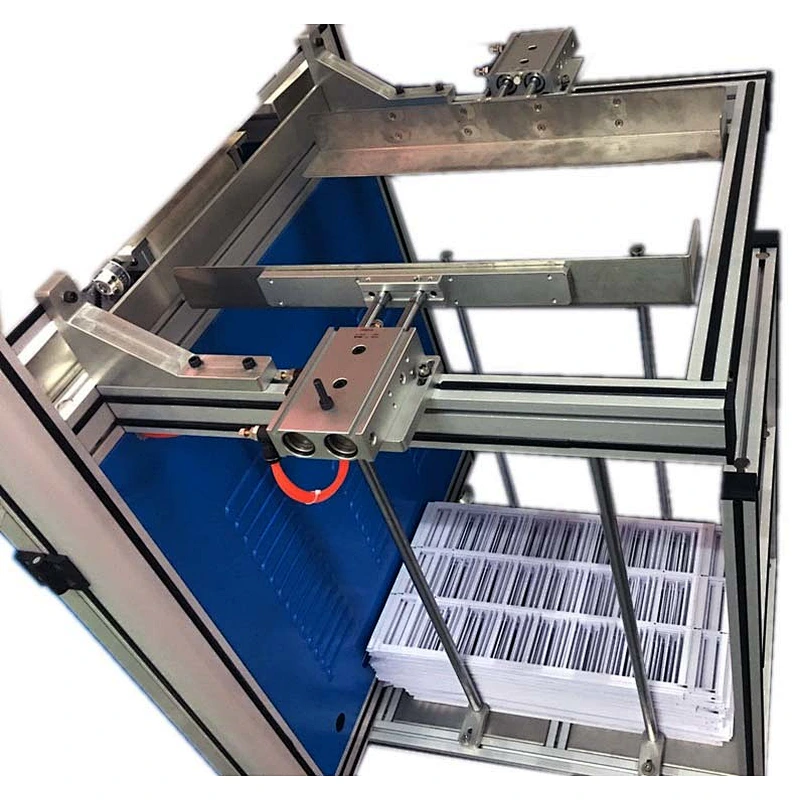

The machine is designed to meet the functional requirements of automatic CR80 standard plastic card punching in a precise way. The machine can automatically pick, place and feed the printed card sheets in an accurate way. It is controlled by PLC with English touch screen display. It features very speedy and precise punching performance.
Functional Features

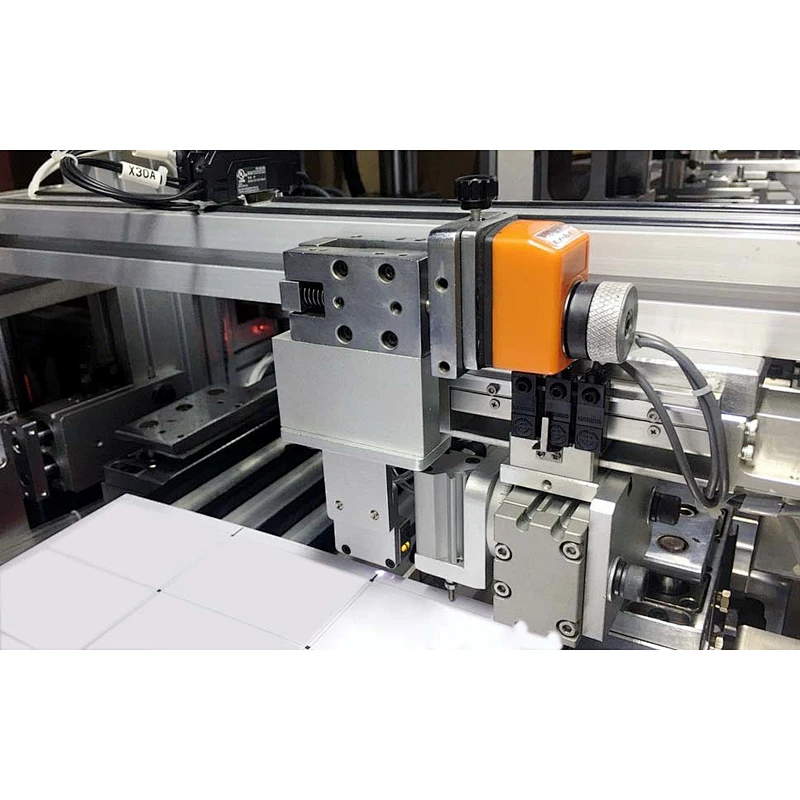

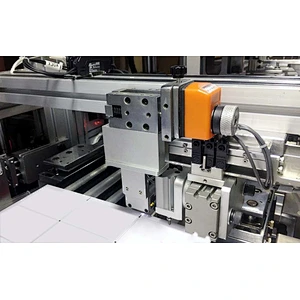

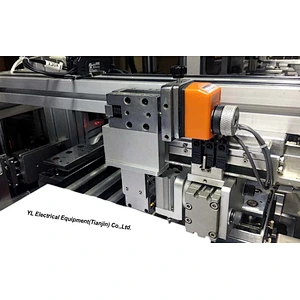

- The material feeding system applies high sensitivity positioning sensor plus quality precision ball screw to ensure precise positioning. Location parameters of each punching point are adjustable.
- It applies high-power servo motor as punching power, which can ensure low noise, high speed and stable power. The punching speed is adjustable.
- Double servo ball screw drive module is used in material feeding to ensure fast speed and high productivity.

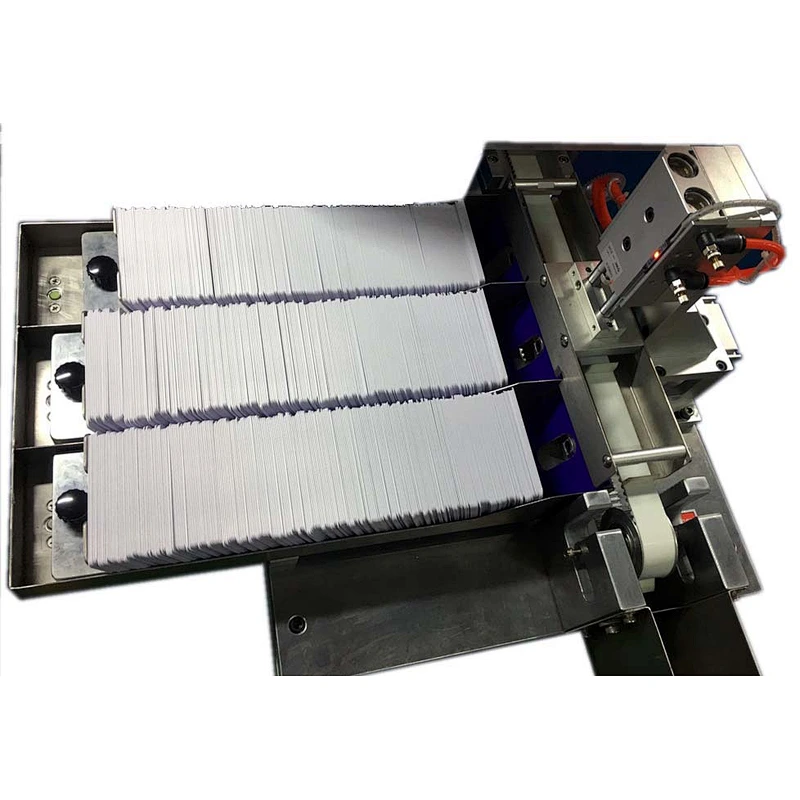

- Advanced Card collection System can automatically receive the cards in different longitudinal ranks. It works fact and reliable.
Technical Parameters
1. Speed: 18000-20000 cards/h (3×8 layout), 21000-25000 cards/h (4×8 layout), 28000-30000 cards/h (5×5 layout),
2. Applicable PVC sheet layout: 3×8, 4×8, 5×5
3. Applicable material: PVC, ABS, PET, PETG and paper
4. Weight: around 1800 Kg
5. Power supply: AC380V 50/60HZ
6. General power: 10.5 KW
7. Compressed air: 6KG/CM2(dry), 150L/min
8. Punch precision: ±0.1mm
9. Control mode: PLC + Servo system
9. Dimension: L2600×W1240×H1750mm
Free Spare Part List
| SN | Part Name | Model | Qty. |
| 1 | Relay DC24V 14 PIN | MY4N-J DC 24V | 2pcs |
| 2 | Fuse | 10A | 3pcs |
| 3 | Internal Hexagonal screw driver | 1.5-10 | 1set |
| 4 | Synchronous belt | 130XL-10 | 1pc |
| 5 | Synchronous belt | 230XL-15 | 1pc |
| 6 | Air cylinder sensor | D-Z73 | 1pc |
| 7 | Air cylinder sensor) | D-A93 | 1pc |
| 8 | Sucking disc | φ35mm | 60pcs |
| 9 | Sucking disc holder | TW | 6pcs |
| 10 | Zero point sensor | TL-W3MC1 | 1pcs |
| 11 | Mould Screw | M8*25mm | 20pcs |
| 12 | Mould Screw | M12*50mm | 4pcs |
