Sequential Number Card Puncher YLP-SN

Model NO.: YLP_SN
Delivery: EXW,FOB,CIF,CFR,FCA
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: 30-45 Days

Quantity:

Product Description
Application Description

Product Technical Specification

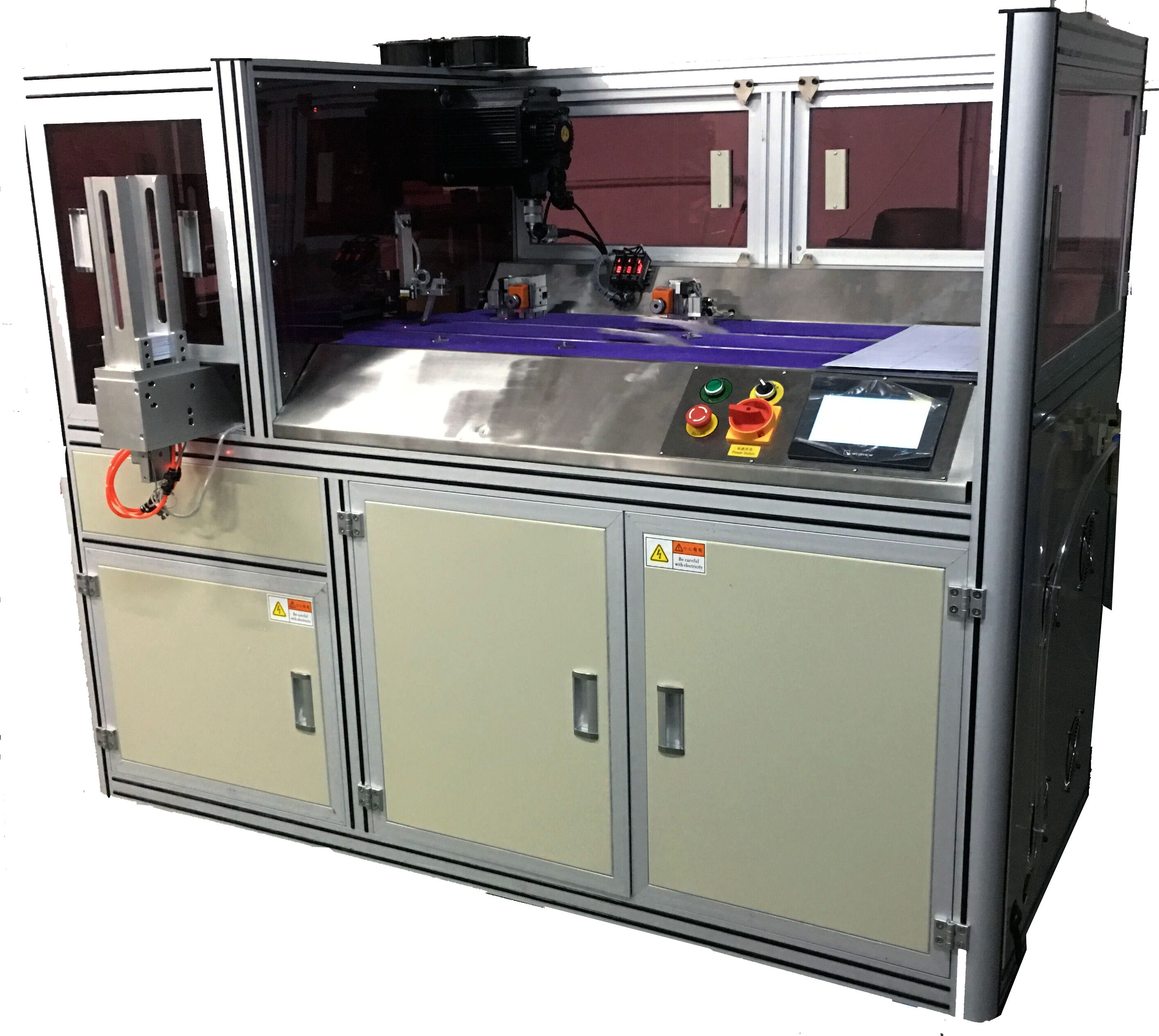

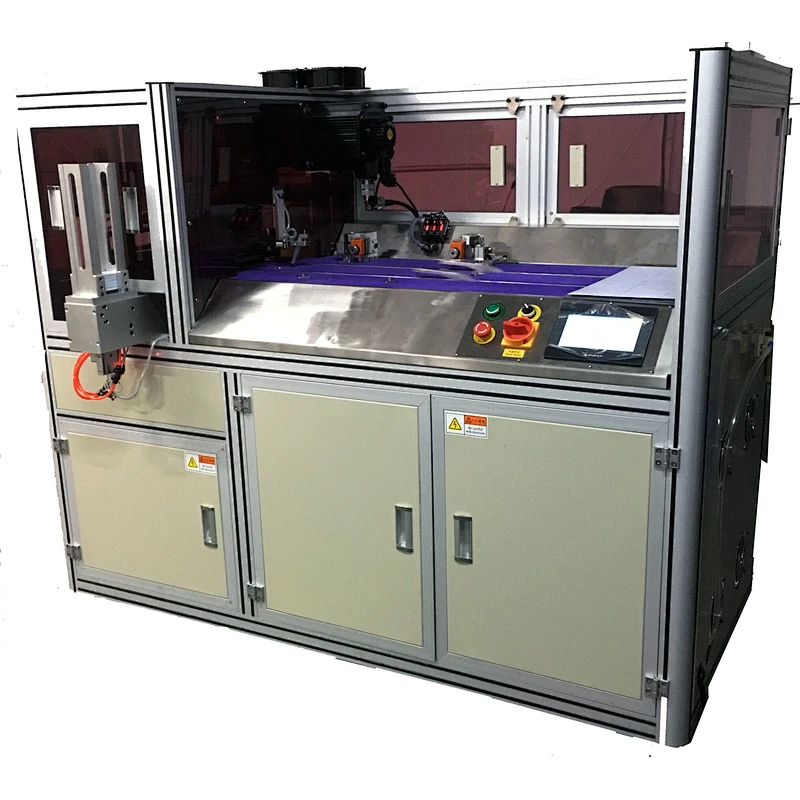

Sequential Number Card Puncher/Card Punching Machine/Card Die Cutter/Card Die Cutting Machine YLP-SN
(Sequential number card puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine)

Sequential Number Card Puncher YLP-SN is specially designed for cutting the printed big sheets (such as 3*8, 4*8 or 5*5 layout) into the standard CR80 cards in a sequential and precise way.
The machine applies the powerful servo motor system as the punching power to ensure more reliable and easy punching. Professional card collecting structure is used to collect serial number cards or standard cards into one card magazine.

Key functional feature
1. High sensitivity optical fiber sensor is used to support the imported servo feeding system to ensure higher punch precision. The punching space position is adjustable by touch screen.
2. The durable servo motor system is applied to work as the punching power, which has lower noise, failure ratio and more reliable operation.

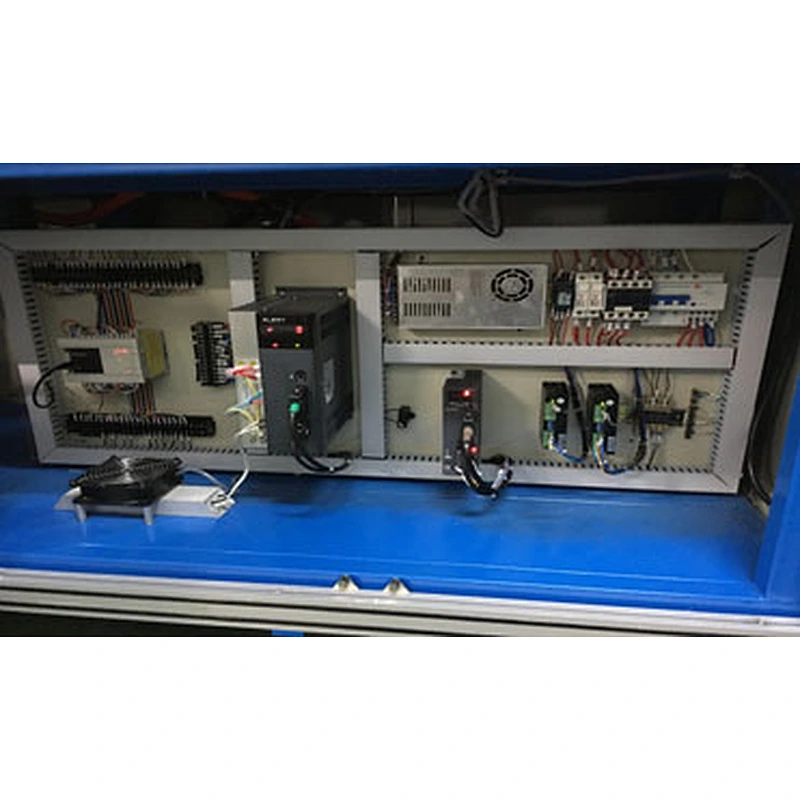

3. The machine is controlled with PLC system. It can punch automatically after the big sheet is manually loaded.
Sequential Number Plastic Card Puncher is also known or named as Sequential Number Card Punching Machine, Card Die Cutter or Card Die Cutting Machine.

Technical Parameter:
Power Supply: AC 380V/50 HZ
Material: Various plastic sheets including PVC, ABS, PETG, etc.
Total Power: 3.5KW
Material Size: 3X8, 4X8 or 5X8
Air Source: 6 kg/c㎡(Dry)
Speed: 9000~12000 pcs /hr
Air Consumption: 70L/min
Control Method: PLC programming+ servo system
Weight: around 800Kg
Operator: 1 person
Precision: ±0.10mm
Dimension: L1700×W830×H1520mm

Free Spare part list
(No.)	（Name)	(Specification)	(Quantity)	(Remark)

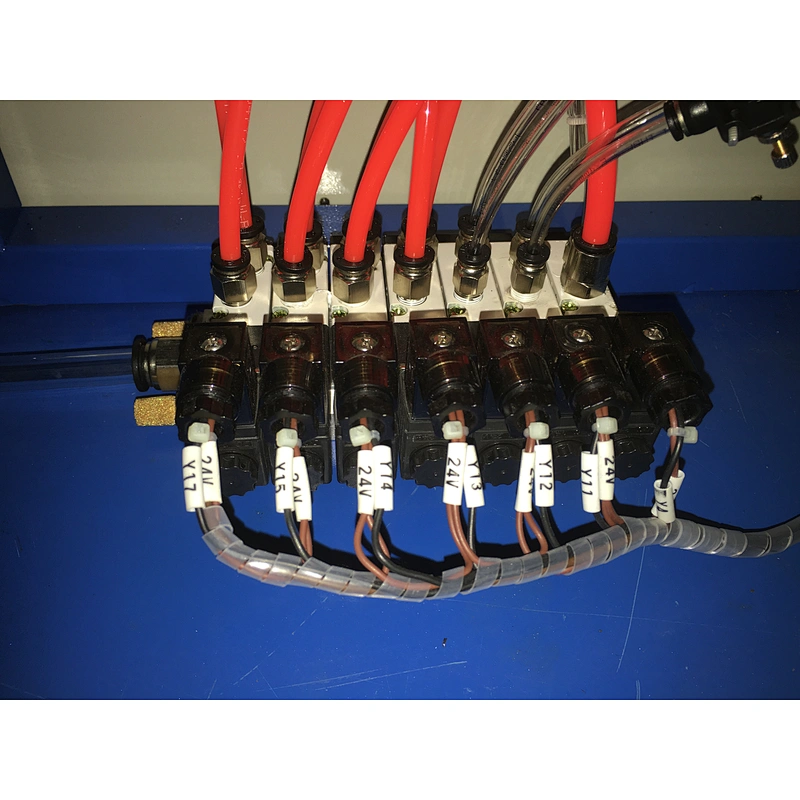

1	Electromagnetic Valve	4V110	1PCS
2	Relay 14PIN DC24V	MY4N-J DC 24V	3PCS
3	Fuse	10A	5PCS
4	Fuse holder	RT18-32	1pcs
5	synchronous belt	10*200XL	1pcs
6	Internal Hexagonal screw driver		1 set
7	operating manua		1 set

Sequential Number Card Puncher YLP-SN is specially designed for cutting the printed big sheets (such as 3*8, 4*8 or 5*5 layout) into the standard CR80 cards in a sequential and precise way.
Note: Pls watch the machine video by click the YOUTUBE address:https://www.youtube.com/watch?v=NJ-yBnnD7fg
