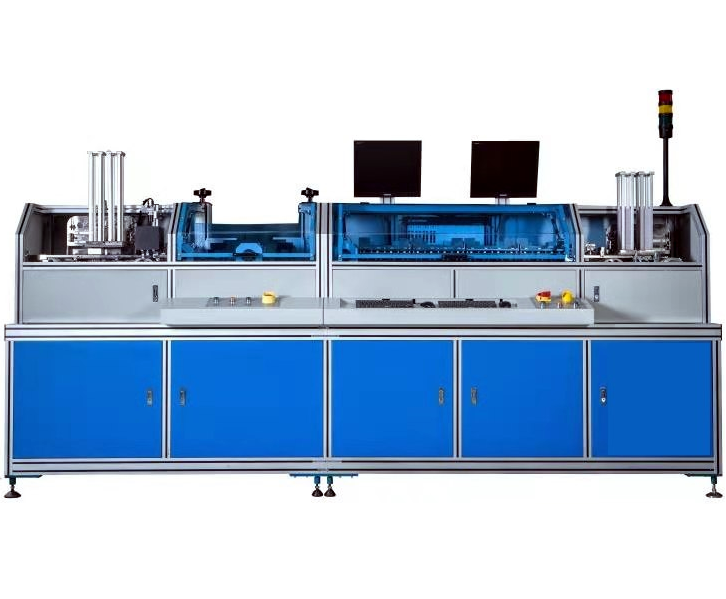

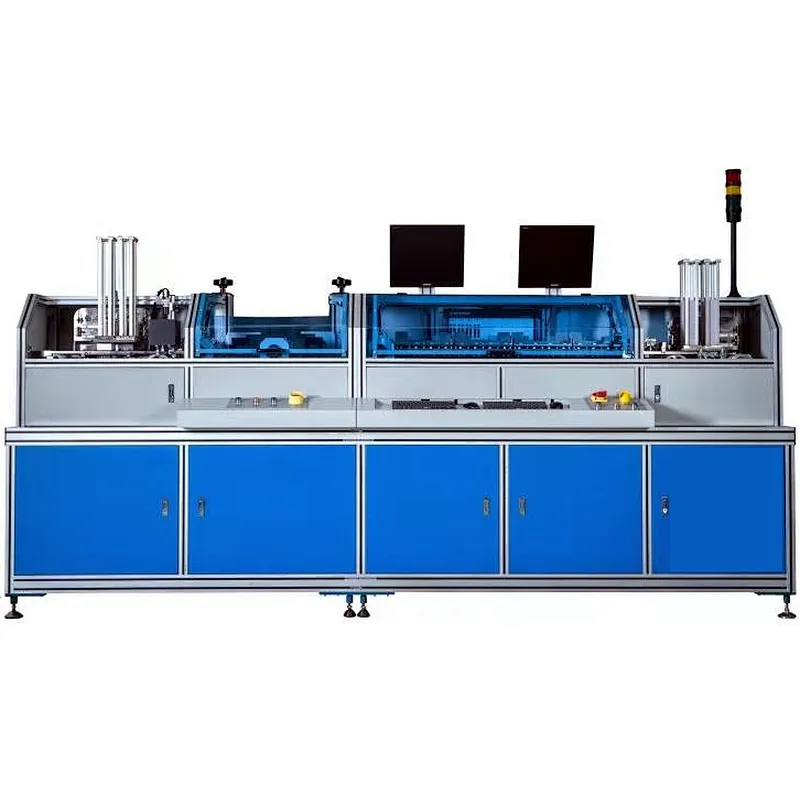

SIM Card Personalization Machine YSCP-1

Product Technical Specification

SIM Card Personalization Machine/SIM Card Data Encoder and Laser Engraving Machine/SIM Card Perso Line/SIM Card Machine YSCP-1

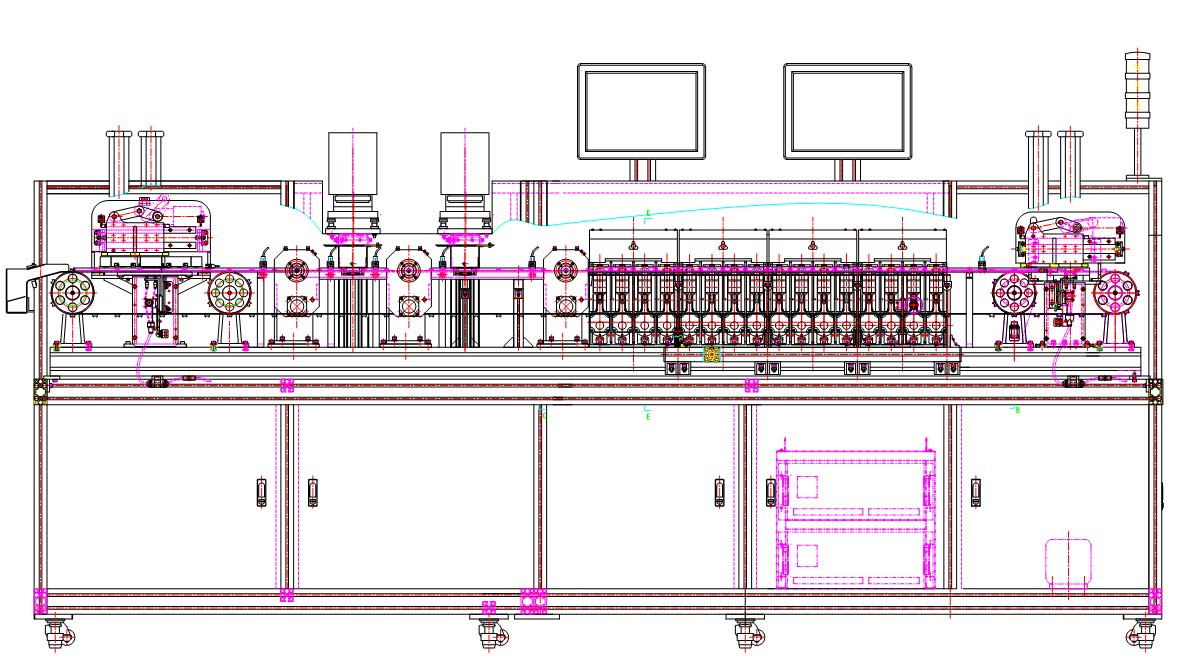

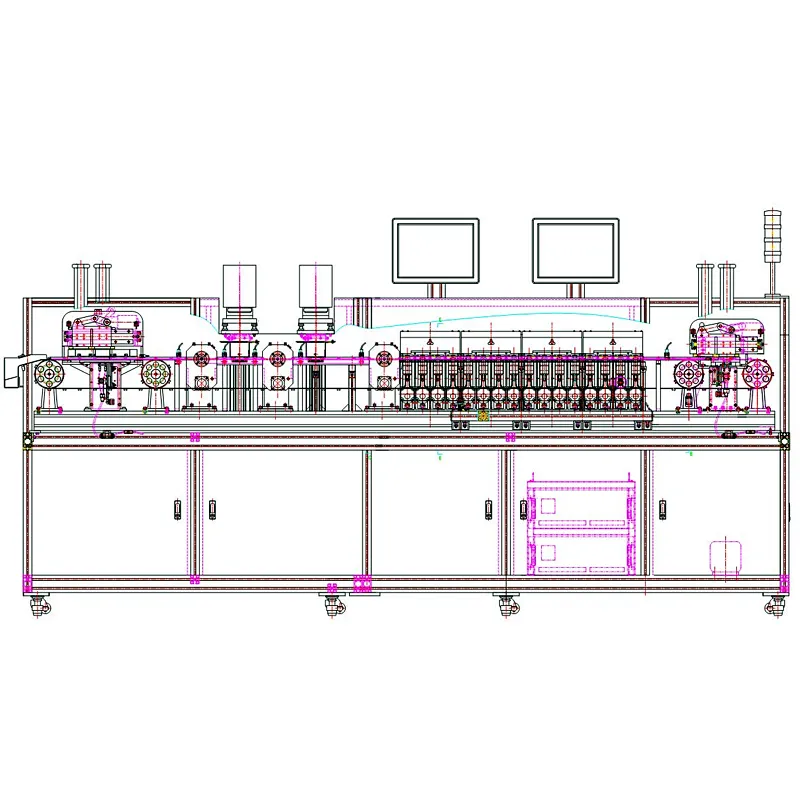

SIM Card Personalization Machine YSCP-1 is applicable for writing the sequential requirement data such as smart card personalized data and it can also be used for laser number marking. The equipment is developed with module design. The card writing head and laser engraving unit can be flexibly supplied according to customer requirements.
Basic Configuration

1. 16 work stations（including 64 writing heads available for both 2-chip card and 4-chip card）2 industrial control host computers

2. 2 Loaders and 2 unloaders（4×500 cards）
3. 1 reject box
4. 3 dual-station flippers (2-side laser marking and collection card surface selection function)
5. 2 laserengravingunits,
6. 1 TP-LINK (48 interfaces) switch

Speed and datadownloading time

X axis is time，Y axis is speed，the time at inflexion is 8.8s. when the downloading time is 24.8s，the speed is 2000 cards/h.
Speed and lasermarking time

X axis is time，Y axis is speed，the time at inflexion is 0.39s,when the marking time is 1.6s，the speed is 1800 cards/h.
The SIM Card Personalization Machine YSCP-1 is also named as SIM Card Data Encoder and Laser Engraving Machine or SIM Card Perso Line YSCP-1.
Technical parameters:

• Dimension:3.6 m×0.8m×1.90 m
• Weight: About 1000kg
• Power: 220V, 50Hz, 3KW（machine），3.6KW（Laser）
• Air pressure: 0.5Mpa 10L/min
