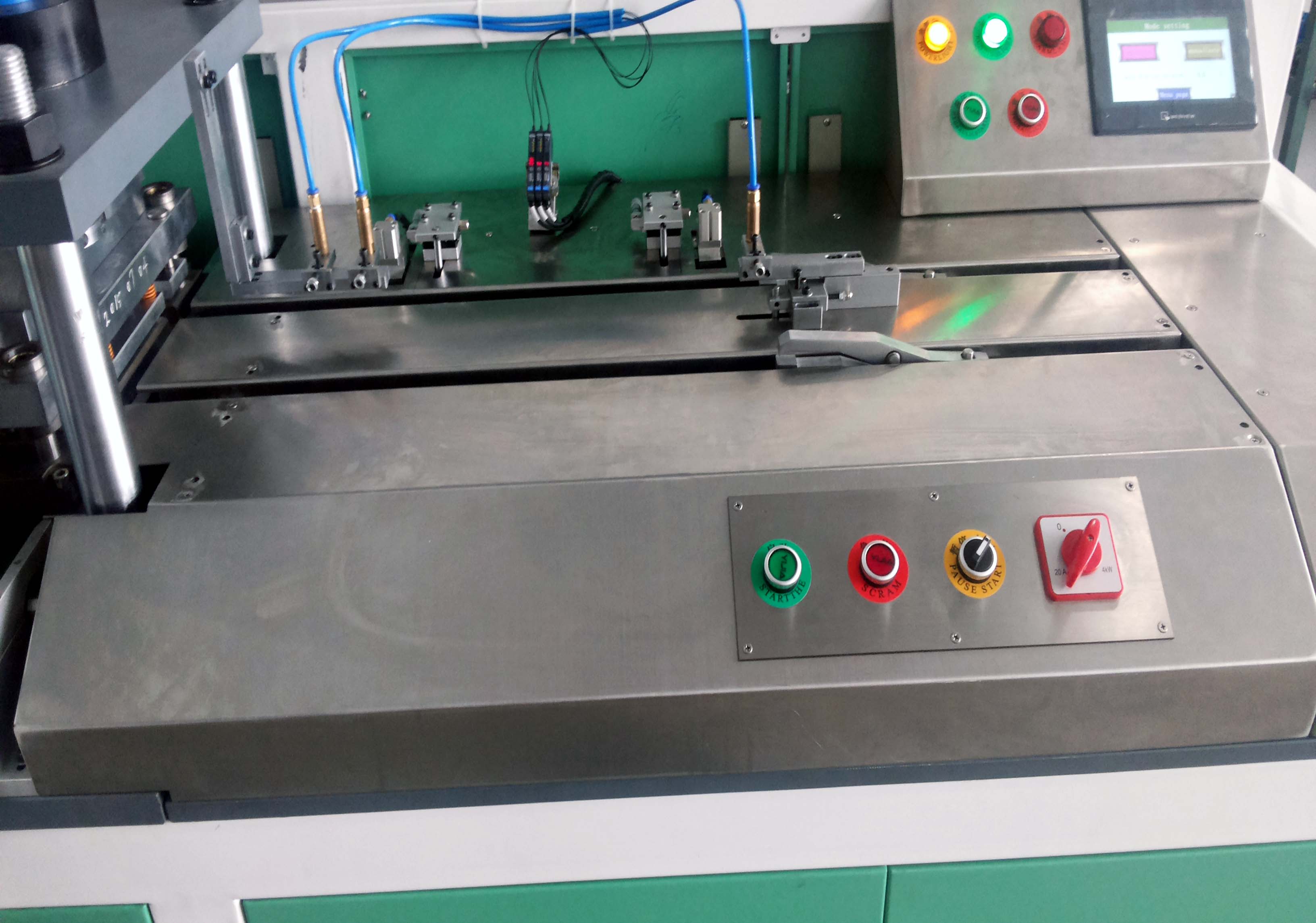

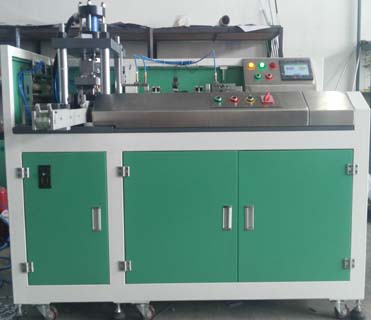

Speedy Plastic Card Puncher/Card Punching Machine/Card Die Cutter/Card Die Cutting Machine YLP-2
(A4 Card puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine)
Feature Description
It is applied for punching the laminated plastic sheets ( 2×5 layout) into ISO CR80 cards in a speedy and precise way.
Technical Parameters
1. Max. Speed: 7000 cards per hour (2×5 layout)
2. Applicable PVC sheet layout: 2×5
3. Dimension: 1700mm×800mm×1500mm
4. Weight: 650Kg
5. Power supply: AC380V 50/60HZ
6. Power rating: 2.5 KW
7. Compressed air: 6KG/CM2
8. Hydraulic pressure: ≤30Kg/CM
9. Service life for 2-up punching mould: 180 million cards
Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=utDpqetlyWA
(A4 Card puncher, plastic card puncher, card die cutter, card punching machine, card machine, card production machine)
Feature Description
It is applied for punching the laminated plastic sheets ( 2×5 layout) into ISO CR80 cards in a speedy and precise way.
- It applies Mitsubishi PLC, touch screen and servo system in order to ensure the machine stability;
- The pneumatic parts applied in this machine are made by AIRTAC to ensure operation durability.
- The guide screws applied are from Taiwan ABBA to ensure the card conveying and punching precision.
- The hydraulic system is made by ASHUN with the advantage of low noise and stable pressure control.
- The punching mould is specially designed to ensure perfect punching result and long-time service life.
Technical Parameters
1. Max. Speed: 7000 cards per hour (2×5 layout)
2. Applicable PVC sheet layout: 2×5
3. Dimension: 1700mm×800mm×1500mm
4. Weight: 650Kg
5. Power supply: AC380V 50/60HZ
6. Power rating: 2.5 KW
7. Compressed air: 6KG/CM2
8. Hydraulic pressure: ≤30Kg/CM
9. Service life for 2-up punching mould: 180 million cards
Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=utDpqetlyWA
It is applied for punching the laminated plastic sheets ( 2×5 layout) into ISO CR80 cards in a speedy and precise way.
