Contactless IC Module Picking-placing Machine

Contactless IC Module Picking-placing Machine

Model NO.: YPP-4000
Delivery: EXW,FOB,FCA,CIF,CFR
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: About 40 Day

Quantity:

Product Description
Application Description

Contactless IC Module Picking-placing Machine/RFID Card INLAY Sheet Chip Pick-placer/RFID Card Prelam Chip Implanting Machine YPP-4000

Feature Description

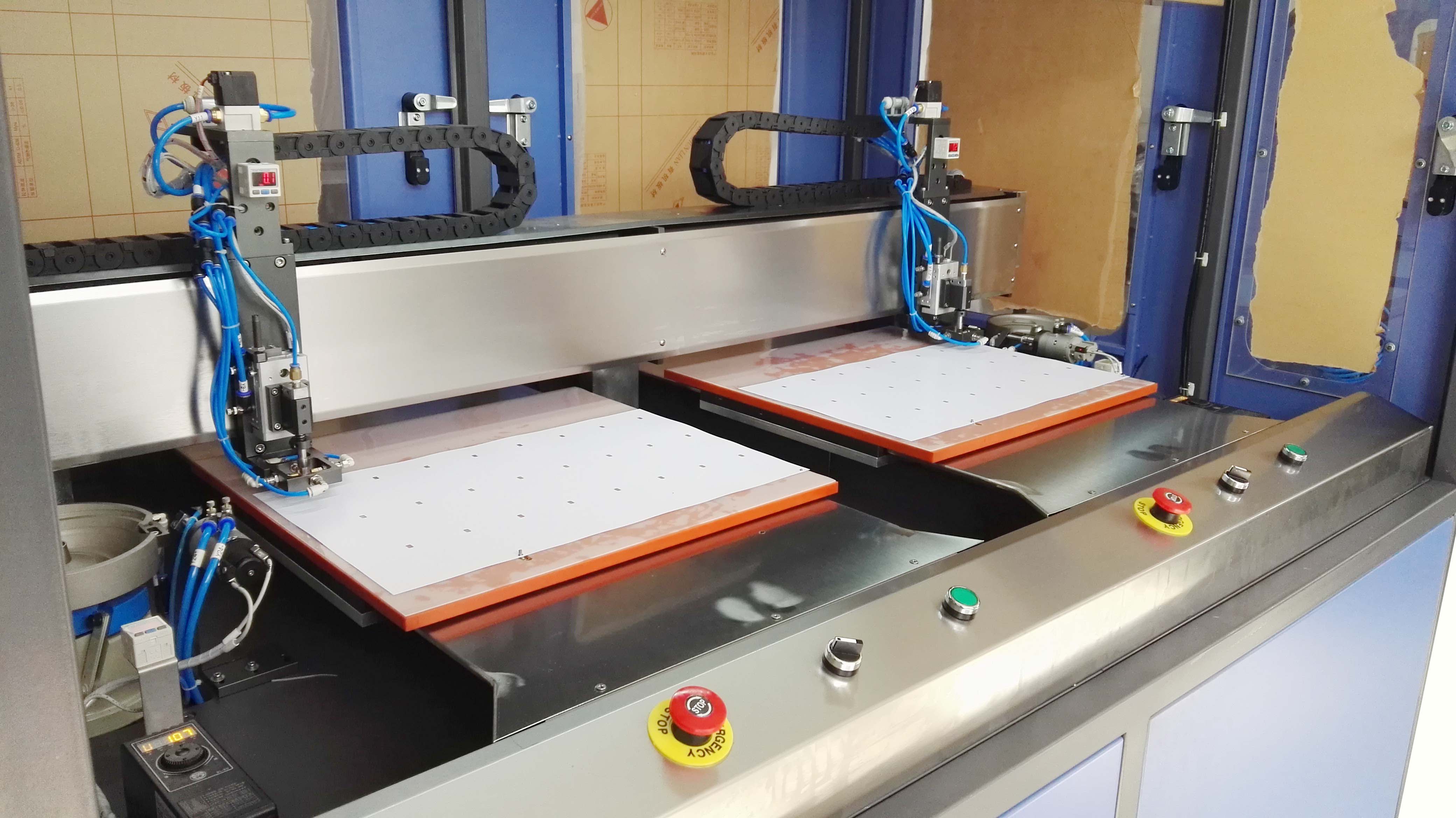

This machine is designed for precisely placing the single contactless IC chip onto chip fixing holes in the INLAY sheet. In order to ensure chip fixing precision, the IC chips are picked and placed with vacuum after air cylinder holds the PVC sheet to ensure its flatness.

Photoelectric sensor is applied to monitor and control the chip feeding. If failure or mistake occurs, it will give warning and stop the machine.
High-precise dual-axles are used to pick, move and place the chips with PLC controlled in order to ensure high position precision.
Picking or placing location for each module can be individually adjusted to ensure high precision of positioning.
It is designed to have two picking-placing units and two working tables to ensure high efficiency.
The liquid glue injection unit is available in the latest design.
It is controlled by Mitsubishi PLC with big-size colorful man-machine interface display. All the pneumatic parts are made by SMC.
Different sheet layout (such as 3×8/4×8/5×5) can be proceeded on the same machine.

The machine-Contactless IC Module Picking-placing Machine YPP-4000 is also known or named as RFID Card INLAY Sheet Chip Pick-placer, RFID Card Prelam Chip Implanting Machine or RFID Chip Implanter YPP-4000.

Technical Parameters

Speed: 4000-4500 pcs per hour.
Dimension: L1600×W700×H1900mm
Weight: 650 KG
Power supply: AC220V 50/60HZ
Power: 3KW
Compressed air: 6 kg/cm2
Air Consumption: 30 L/min.
Control mode: PLC+ dual-axis location system
Chip positioning precision: ±0.05mm

Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=-wImkT98n1Y

This machine is designed for precisely placing the single contactless IC chip onto chip fixing holes in the INLAY sheet. In order to ensure chip fixing precision, the IC chips are picked and placed with vacuum after air cylinder holds the PVC sheet to ensure its flatness.
