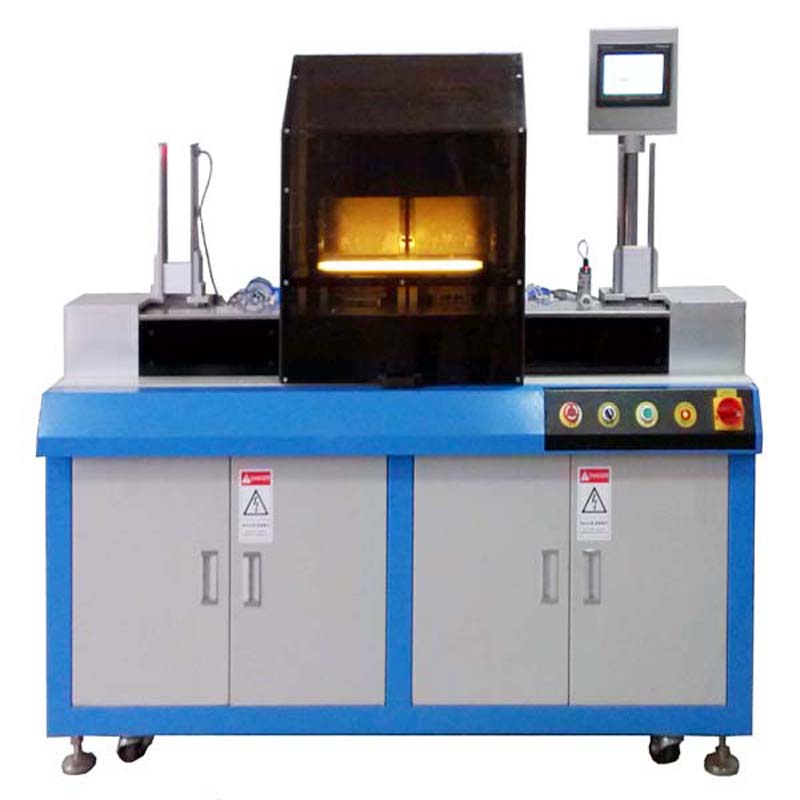

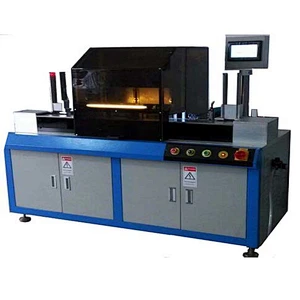

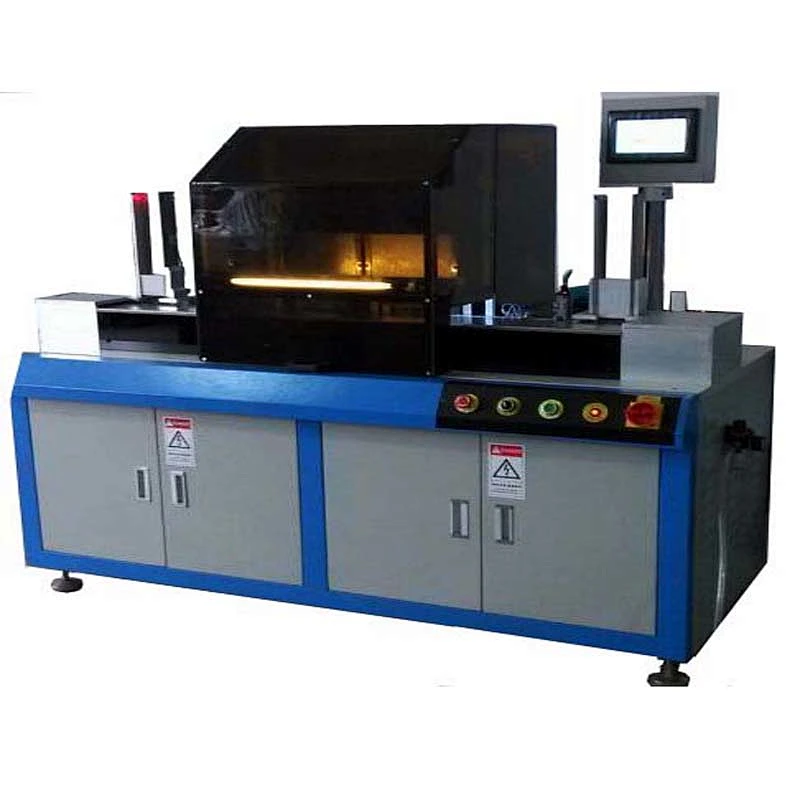

Plug-in Sim Card Punch Machine YSMP-5000

Plug-in Sim Card Punch Machine YSMP-5000

Model NO.: YSMP-5000
Delivery: EXW,FOB,FCA,CIF
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: about 40 days Day

Quantity:

Product Description
Application Description

Plug-in Sim Card Punch Machine YSMP-5000
(SIM card puncher, plug-in SIM card puncher, card slot cutter, card puncher, card machine)

Function Description

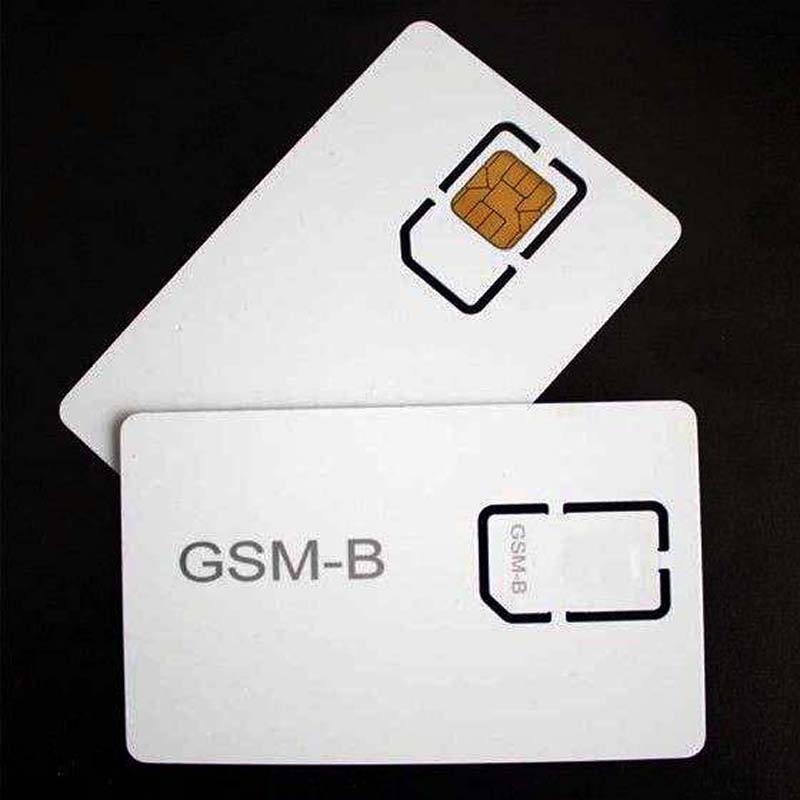

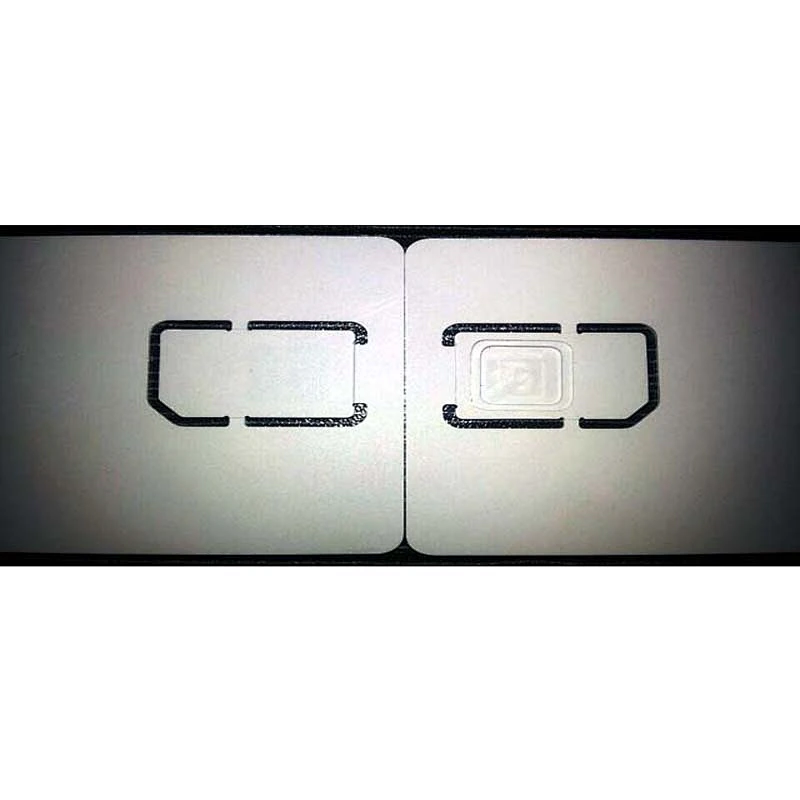

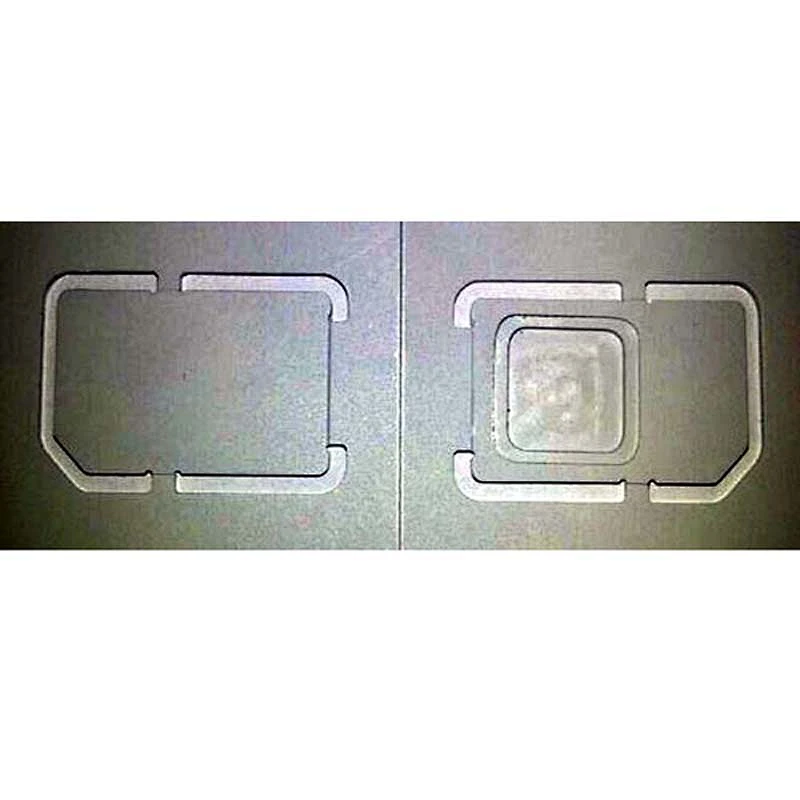

Plug-in Sim Card Punch Machine YSMP-5000is designed for punching and indenting Plug-in SIM card on standard plastic cards in a precise and speedy way. It includes two stations-slot punching station and indenting (kiss punch) station. It is controlled by PLC, which can well ensure easy parameter setting and stable performance. Punching is driven by servo system. Parameters are adjustable, speed is fast and precision is high.
Basic configuration:
Card feeding magazine-card overlapping detection-Slot punch station- indenting (kiss punch) station -Card Collection magazine

Slot punching mould features advanced automatic guiding structure, and the punch die is made of quality special wear-resisting mould steel to ensure longer service life.
Indenting mould also applied special mould special to ensures quality work, mould adjustment and replacement is easy and convenient..
It is designed by proper mould structure, which can ensure easier changing of mould. One additional set of moulds is included in the shipment.
The punch driving power is high-power servo motor, which can ensure reliable performance, powerful punch force and high precision.
Special conveying belts are applied in conveying card to ensure stable, speedy and precise conveying of card, and there is no scratch in the whole conveying process.
Card direction and card overlapping detection function are available to ensure precise card sending before punch.

Technical specification

Power supply	AC 380V 50/60 HZ	Control method	PLC + Servo system
Total power	5.5 KW	Card specification	ISO CR80/IEC7810 54x85.6mm
Air source	6kg/cm² (dry)	Dimension	Approximately L1500xW820xH1750 mm
Air consumption	Approx. 50L/min	Positioning precision	±0.020mm
weight	Approx 850Kg	Operator	1 Person
Speed	5000~6000pcs/h

Plug-in Sim Card Punch Machine YSMP-5000 is designed for punching and indenting Plug-in SIM card on standard plastic cards in a precise and speedy way. It includes two stations-slot punching station and indenting (kiss punch) station. It is controlled by PLC, which can well ensure easy parameter setting and stable performance. Punching is driven by servo system. Parameters are adjustable, speed is fast and precision is high.
