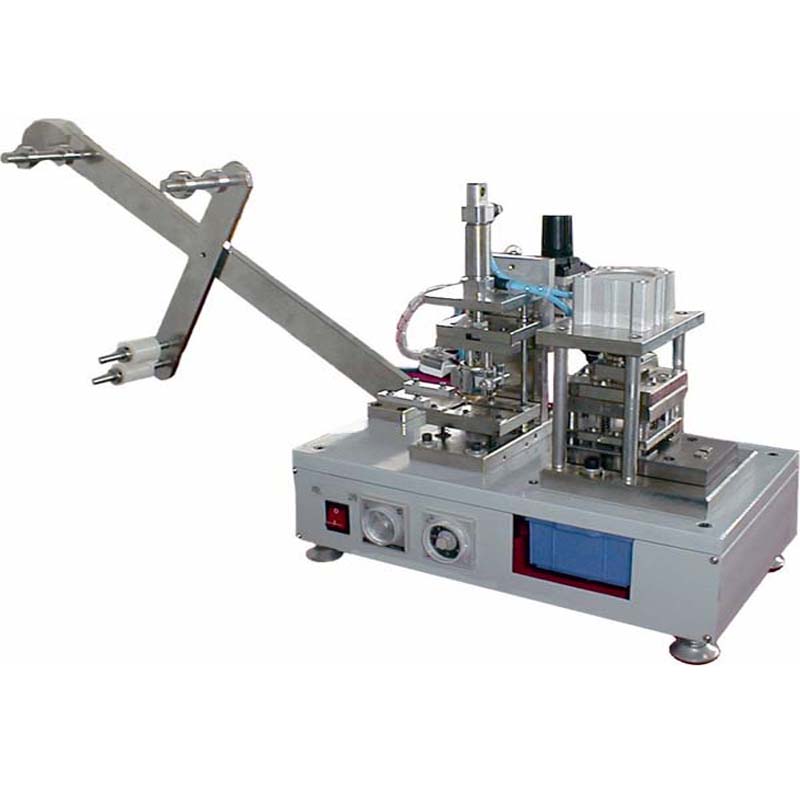

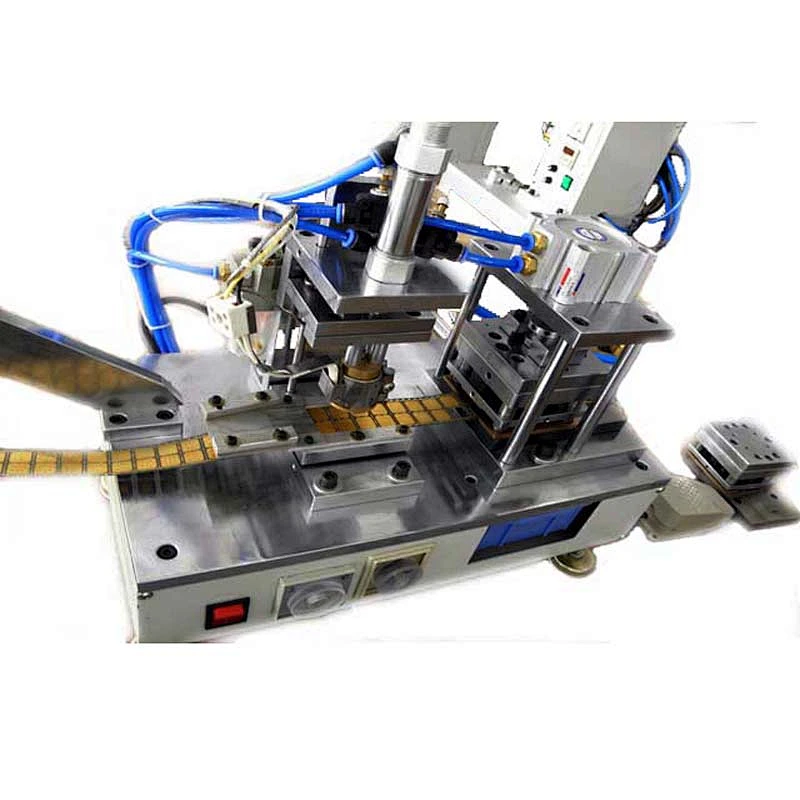

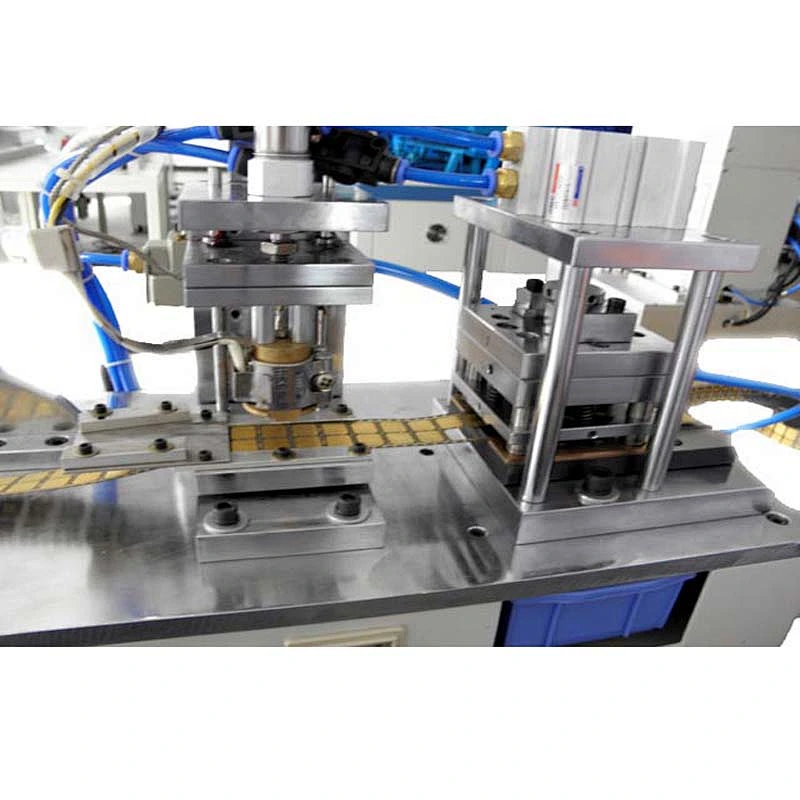

Contact IC Card Module Cutter YMC-1
(IC chip cutter, IC chip tape puncher, IC module tape cutter, IC card machine, smart card machine)
Feature Description

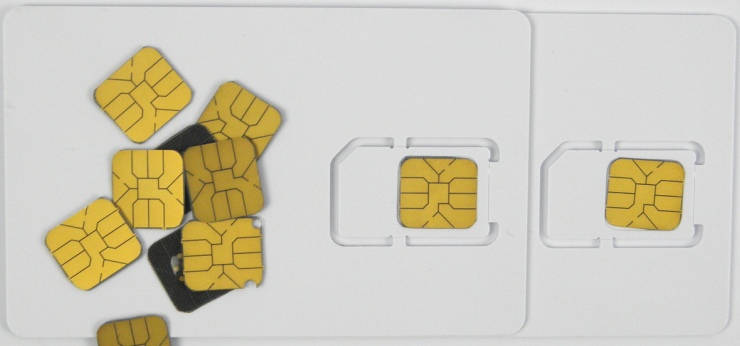

The machine is designed for cutting the single IC chips from the IC Module tape after the hot melt glue is pressed to the IC module bottom side.
Basic configuration

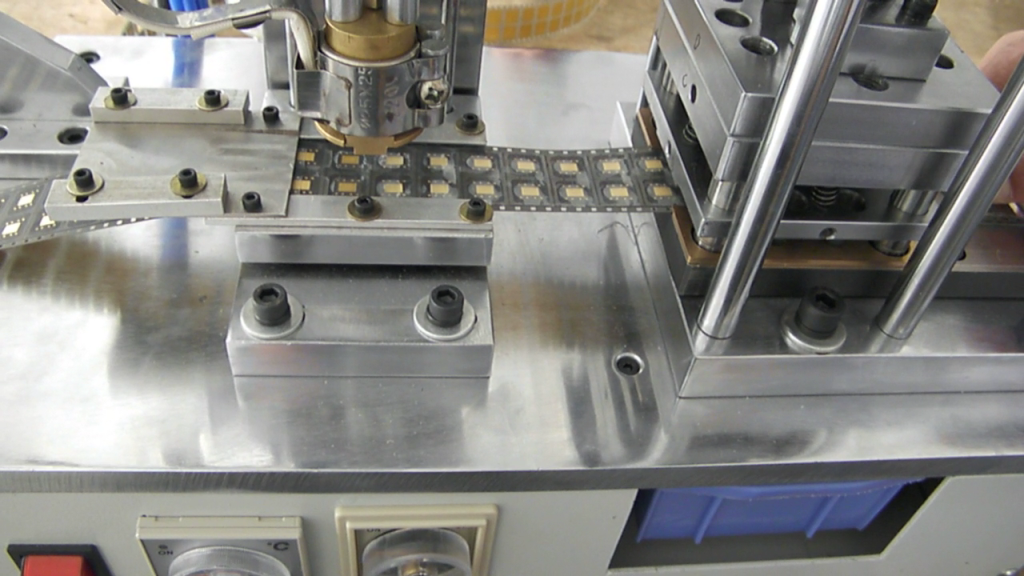

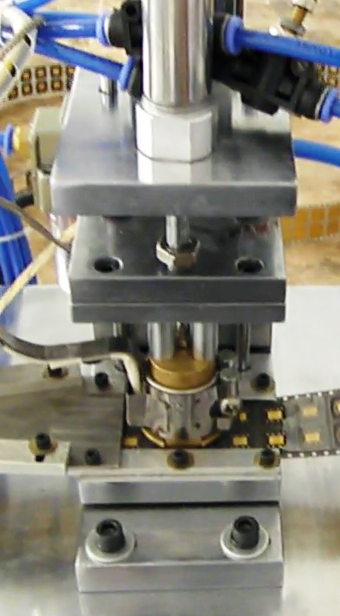

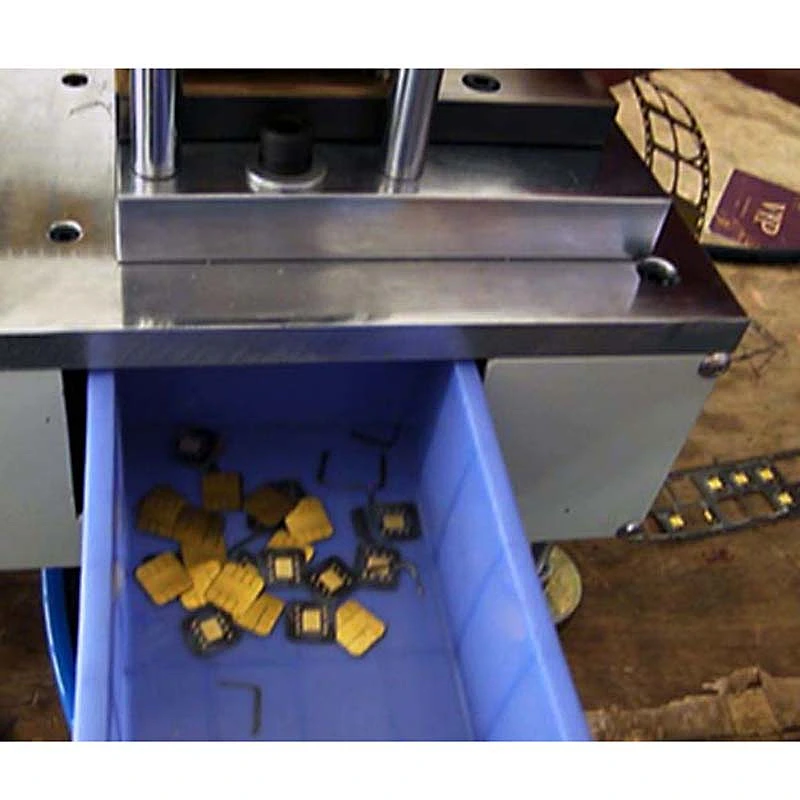

Material releasing (glue tape wheel and chip reel wheel)→hot pressing station (stick the glue tape onto chip bottom by hot lamination)→chip cutting station( cut the chip tape into single pieces)→chip collection unit
Technical Parameters
(IC chip cutter, IC chip tape puncher, IC module tape cutter, IC card machine, smart card machine)
Feature Description
The machine is designed for cutting the single IC chips from the IC Module tape after the hot melt glue is pressed to the IC module bottom side.
- It is controlled by relay unit with easy maintenance.
- All the pneumatic parts are made by SMC to ensure quality operation.
Basic configuration
Material releasing (glue tape wheel and chip reel wheel)→hot pressing station (stick the glue tape onto chip bottom by hot lamination)→chip cutting station( cut the chip tape into single pieces)→chip collection unit
Technical Parameters
- Speed: 4000-6000 units per hour
- Material model: M2/M3 standard chip tape
- Compressed air: 6 kg/cm2
- Air Consumption: 10 L/min.
- Power:0.4KW
- Power supply: AC220V 50/60HZ4
- Weight: 30 KG
- Dimension: L600×W300×H300mm
Material releasing (glue tape wheel and chip reel wheel) →hot pressing station (stick the glue tape onto chip bottom by hot lamination)→chip cutting station( cut the chip tape into single pieces)→chip collection unit
