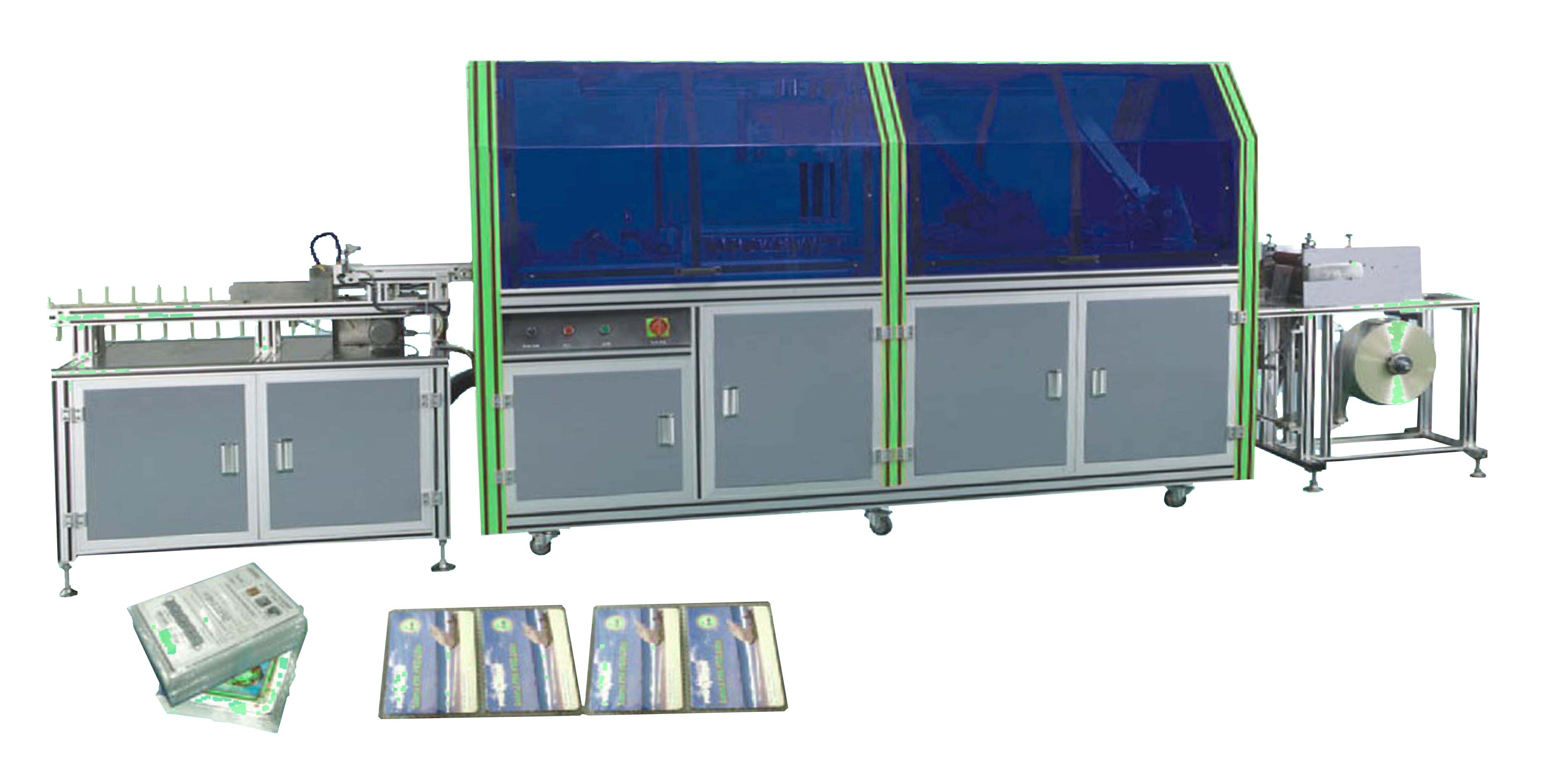

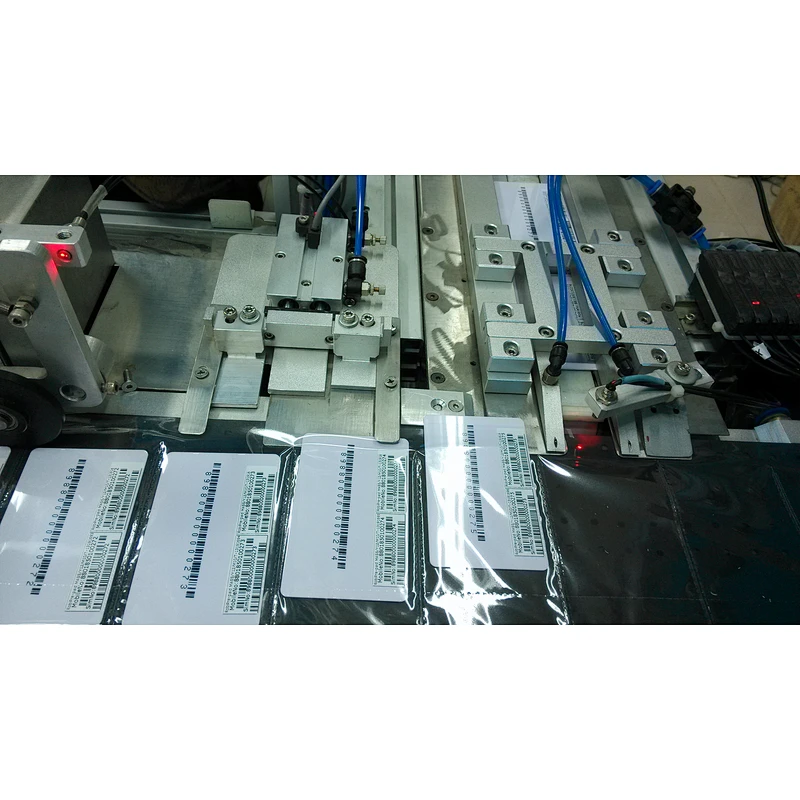

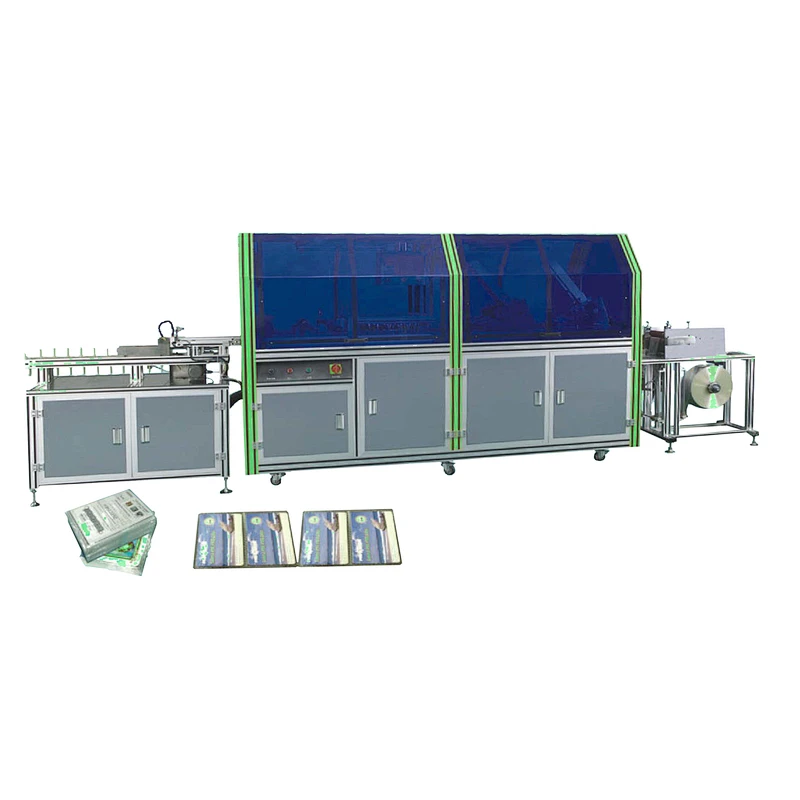

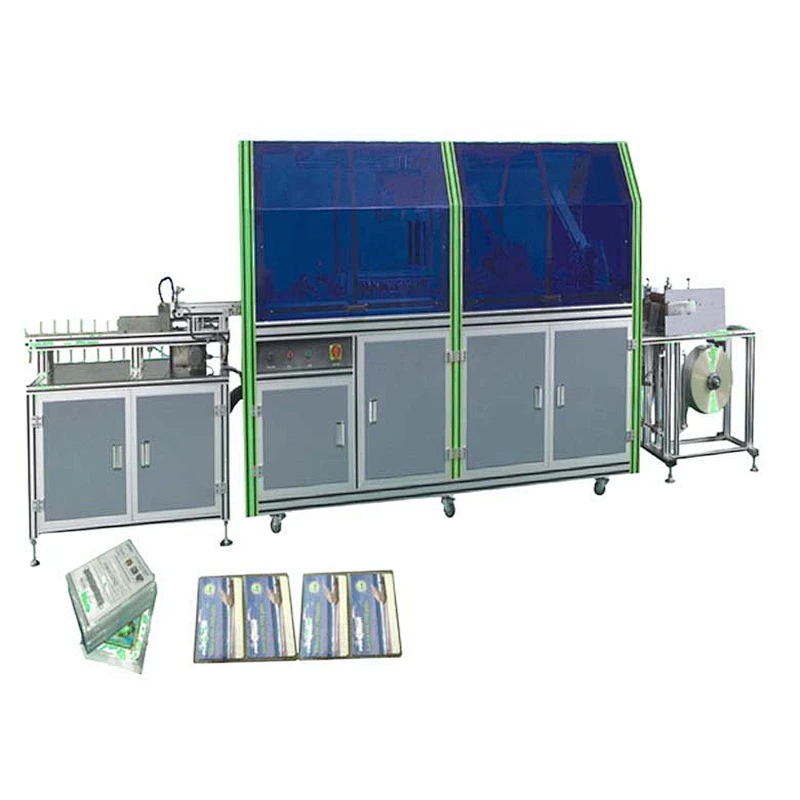

Automatic High-speed Ultrasonic Card Packing Machine/Card Packaging Machine/Card Wrapping Machine/Card Wrapper/Card Packer YUP-3000
Automatic High-speed Ultrasonic Card Packing Machine YUP-3000 can realize perfect single-card or multi-card packing by applying continuous ultrasonic welding technology in a very high speed. PLC controlled with friendly man-machine interface, it features faster speed, low noise, perfect welded pattern and reliable performance. It is applicable to pack cell phone charge card, standard and smaller SIM card in bulk.
Key Features：
1. Packing film is conveyed by special rubber wheel and air absorbing belt to ensure flat and stable film.
2. It has the function of automatic checking for card overlapping and card absence. If the above occurs, it will stop automatically with error notice.
3. The second feeder can be installed to pack double cards or insert the mini booklet in one bag.
4. It applies the welding technology of continuous ultrasonic welding, which can ensure clear and beautiful sealing patterns or lines.
5. Single-card packing or Multiple-card packing is available, and the number of cards to be collected can be set.
6. Visual inspection system is optional, which can check the serial number or bar codes of the cards.
7. Chain card binding unit is optional, which can bind the packed chain cards.
Automatic High-Speed Ultrasonic Card Packing Machine YUP-3000 is also known as Speedy Card Packaging Machine, High-speed Card Wrapping Machine, Card Wrapper or Card Packer YUP-3000.
Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=bU5E5roI5Mg
Technical Parameters:
Automatic High-speed Ultrasonic Card Packing Machine YUP-3000 can realize perfect single-card or multi-card packing by applying continuous ultrasonic welding technology in a very high speed. PLC controlled with friendly man-machine interface, it features faster speed, low noise, perfect welded pattern and reliable performance. It is applicable to pack cell phone charge card, standard and smaller SIM card in bulk.
Key Features：
1. Packing film is conveyed by special rubber wheel and air absorbing belt to ensure flat and stable film.
2. It has the function of automatic checking for card overlapping and card absence. If the above occurs, it will stop automatically with error notice.
3. The second feeder can be installed to pack double cards or insert the mini booklet in one bag.
4. It applies the welding technology of continuous ultrasonic welding, which can ensure clear and beautiful sealing patterns or lines.
5. Single-card packing or Multiple-card packing is available, and the number of cards to be collected can be set.
6. Visual inspection system is optional, which can check the serial number or bar codes of the cards.
7. Chain card binding unit is optional, which can bind the packed chain cards.
Automatic High-Speed Ultrasonic Card Packing Machine YUP-3000 is also known as Speedy Card Packaging Machine, High-speed Card Wrapping Machine, Card Wrapper or Card Packer YUP-3000.
Note: Pls watch the machine video by click the YOUTUBE address:
https://www.youtube.com/watch?v=bU5E5roI5Mg
Technical Parameters:
| Power Supply | AC 380V/50 HZ | Control Method | PLC programming+ Step System |
| Total Power | 5KW | Operator | 1 person |
| Air Source | 6 kg/c㎡(Dry) | Dimension | L4800×W980×H1860mm |
| Air Consumption | 50L/min | Packaging Material | BOPP film or similar 0.025mm~0.035 mm thick |
| Weight | Approximate 1000Kg | Card size | 0.25-0.8mm thick CR80 cards |
| Speed | Max 30000 pcs/hr | Packaging Size | Folded film 120 mm wide (for standard card ) or 60mm wide (for half size card), Film roll inner diameter 3 inches and external diameter less than 450 mm, |
Automatic High-speed Ultrasonic Card Packing Machine YUP-3000 can realize perfect single-card or multi-card packing by applying continuous ultrasonic welding technology in a very high speed. PLC controlled with friendly man-machine interface, it features faster speed, low noise, perfect welded pattern and reliable performance. It is applicable to pack cell phone charge card, standard and smaller SIM card in bulk.
