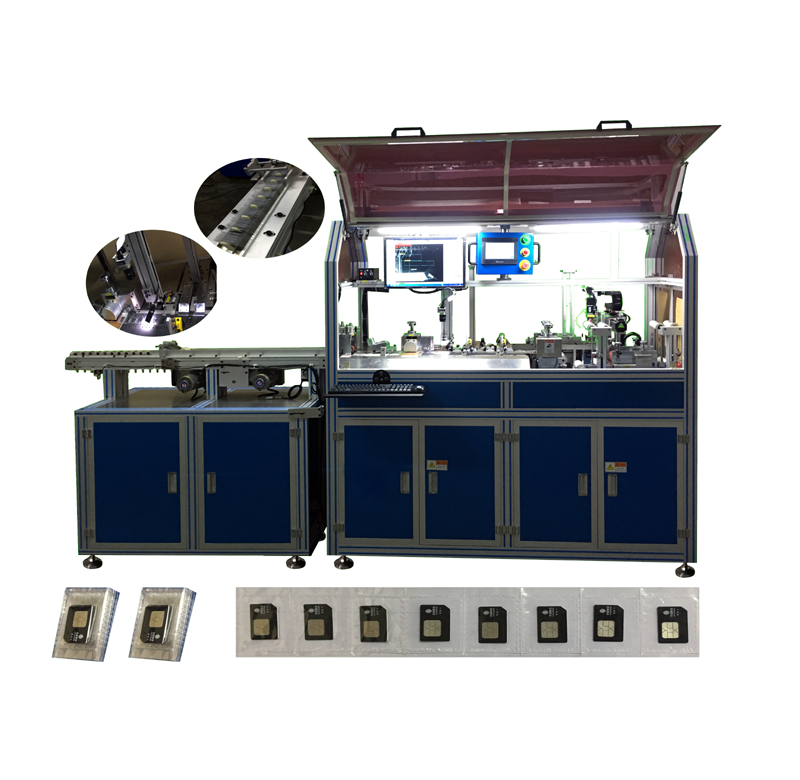

Mini SIM Card Packing Machine

Model NO.: YUP-MC_8000
Delivery: EXW.FOB,CIF,FCA
Minimum order quantity: 1 set
Country of Origin: China
Stock Time: About 40-50 Day

Quantity:

Product Description
Application Description

Mini SIM Card Packing Machine/ Mini SIM Card Packaging Machine/Mini SIM Card Packer/Mini SIM Card Wrapping Machine/Mini SIM Card Wrapper YUP-MC-8000

The machine is designed for packaging 2FF mini SIM Cards. It can also pack other mini SIM cards including the punched 2-chip card, 4-chip card, 6-chip card and 9-chip card.
★ Application Introduction
This machine is controlled automatically by the PLC program, and the Chinese and English touch screen is working with a friendly man-machine interface. It uses the continuous ultrasonic welding process with such features as fast speed, low noise, clear welding pattern and low air consumption.

The machine -Mini SIM Card Packing Machine YUP-MC-8000 is also named as Mini SIM Card Packaging Machine, Mini SIM Card Packer, Mini SIM Card Wrapping Machine or Mini SIM Card Wrapper YUP-MC-8000.

★ Functional Features

It integrates the functions of film delivery, card delivery, card tearing, and card collection.
The packaging film is conveyed by a special rubber wheel and a film suction belt, which is stable and smooth.
It uses automatic detection of repeated card, no card or no film, and it will automatic shutdown when any error occurs.
It is suitable for various packaging films with the thickness more than 0.025mm .
It uses continuous ultrasonic welding process, and the welded pattern is clear and beautiful.
It has the chained card packaging function and can set the number of each chained card section.
The edge of the packaging bag uses a personalized design structure.
It has professional card collection structure, which can automatically fold the packaged small cards and store them in a single block collection belt.
The CCD visual inspection system is optional which can detect the serial number or bar-code of the SIM mini cards.

Note: Pls watch the machine video by click the YOUTUBE address:
https://youtu.be/omjGWo-xYXw

Main Technical Parameters

Power supply	AC 220V/50 HZ	Control method	PLC program control + servo system
Total power	4KW	Operator number	One person
Air Source	6 kg/c㎡(with no water)	Dimension	L2000×W700×H1800mm
Air consumption	About 50L/min	Packaging film material	BOPP etc
Weight	About 500Kg	Packaging film thickness	0.025mm~0.035 mm
Productivity	About 7000~8000pcs/hour	Automatic folding number	10~25 small cards per stack
Applicable cards	1. Standard 2FF small card (15X25mm) 2. The punched seamless double-chip, four- hip, six- chip, and nine-chip standard cards	Packaging film specifications	BOPP packaging film with width of 60 mm, inner diameter of 3 inches and outer diameter of less than 450 mm after being folded in half

The machine is designed for packaging 2FF mini SIM Cards. It can also pack other mini SIM cards including the punched 2-chip card, 4-chip card, 6-chip card and 9-chip card.
