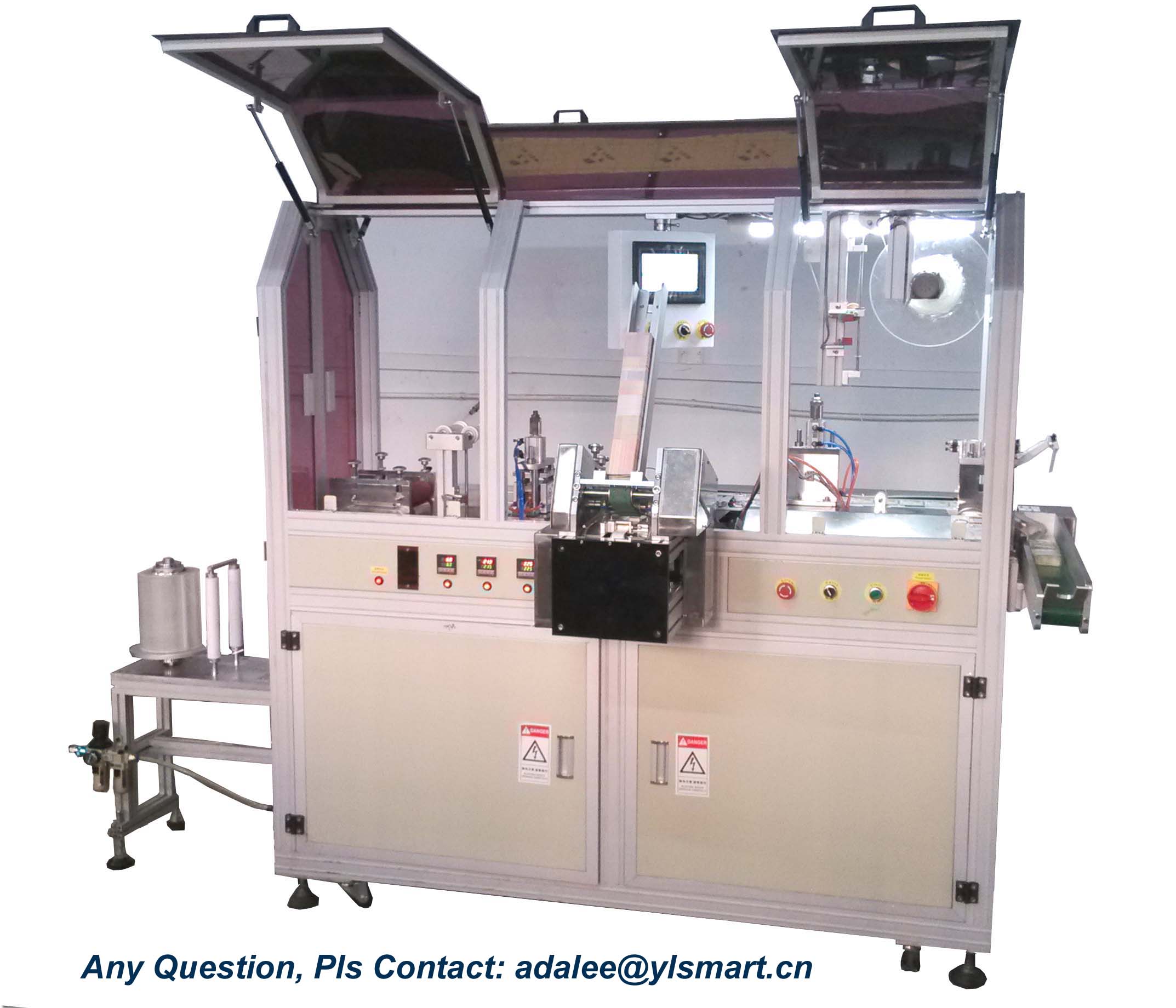

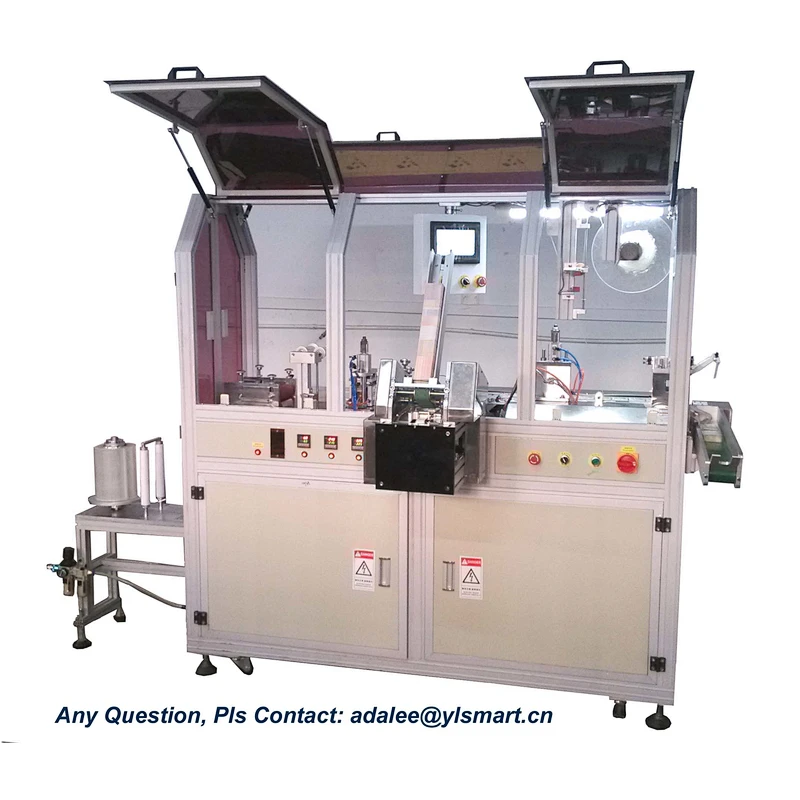

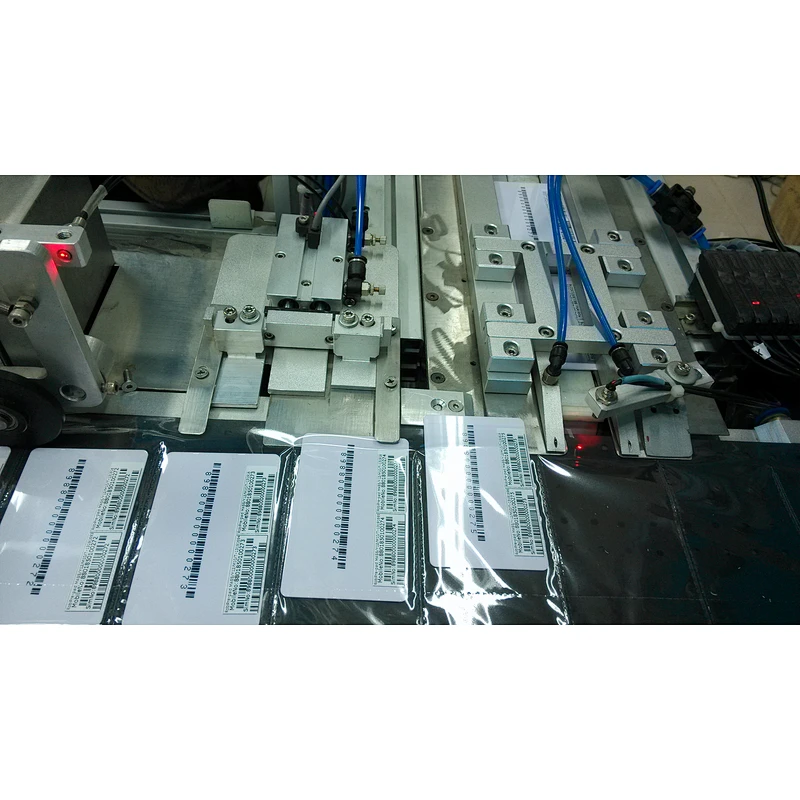

Automatic Hot-sealing Card Packing Machine YHP-600 is designed for massively packing normally used cards such as telephone charging cards in an economic and fast way. It applies hot-welding and high-pressure packing technology. Card Sending and film conveying is realized by stepping motor. It is automatically controlled by PLC with friendly human-machine interface. The welding line is straight line, and the zigzag lines cannot be realized in this machine.

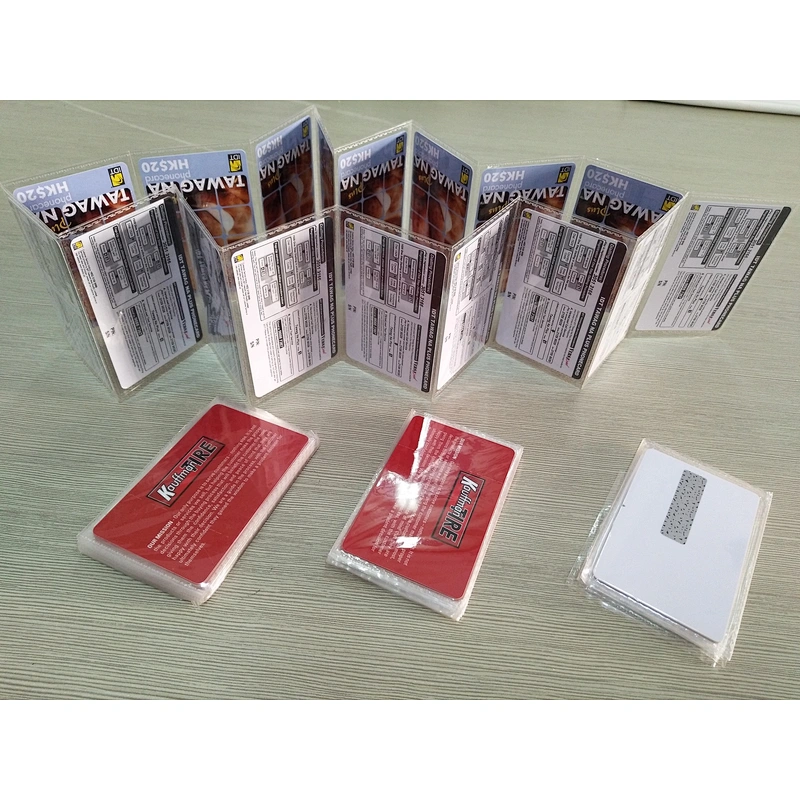

Key functions: 1. automatic monitoring and alarming on card overlapping or card absence is available. 2. It can wrap all the paper or plastic cards with the thickness of over 0.25mm. 3. The minimum thickness of the available packing film is 0.025mm. 4. Single-Card Packing or multiple-card packing function are available, and packed chain card collection quantity can be set. 5. Welding With double mould is available, and replacement of welding mould is easy. 6. The size of the packing bag is adjustable. 7. Visual inspection system is optional, which can be used to check the card serial number or barcode.
Automatic Hot-sealing Card Packing Machine YHP-600 is also known as Card Packaging Machine, Card Wrapping Machine, Card Wrapper or Card Packer YHP-600.
Technical Parameter:
Power Supply
AC 380V/50 HZ
Control Method
PLC programming+ Step System
Total Power
2.5KW
Operator
1 person
Air Source
6 kg/c㎡(Dry)
Dimension
L2650×W11000×H1800mm
Air Consumption
50L/min
Packaging Material
BOPP film or similar 0.025mm~0.035 mm thick
Weight
600Kg
Card size
0.25-0.8mm thick CR80 cards
Speed
Max 6000 pcs /hr
Packaging Size
Folded film 105mm wide or single film roll 210mm wide. Film roll inner diameter 3 inches and external diameter less than 450 mm,
Free spare parts along with card packing machine YHP-6000
No.
Name
Specification
Quantity
1
Card feeding belt
320X45X5mm
1PCS
2
synchronous belt
250XL（width 10mm）
1PCS
3
synchronous belt
110XL（width10mm）
1PCS
4
synchronous belt
100XL（width10mm）
2PCS
5
synchronous belt
180XL（width10mm）
1PCS
6
synchronous belt
200XL（width10mm）
2PCS
7
synchronous belt
130XL（width10mm）
1PCS
8
synchronous belt
210XL（width10mm）
1PCS
9
synchronous belt
220XL（width10mm）
1PCS
10
synchronous belt
180L（width20mm）
1PCS
11
synchronous belt
190L（width20mm）
1PCS
12
spring
1PCS
13
Feeder rubber roller
2PCS
14
Relay
DC24V
2PCS
15
Relay Holder
DC24V
2PCS
16
Fuse
10A
3PCS
17
Fuse holder
1PCS
18
Thermocouple
3m 1/4"
1PCS
19
Ф12x80 Heater tube
300W 220V
1PCS
20
Ф12x55 Heater tube
300W 220V
1PCS
21
Ф6x80 Heater tube
200W 220V
1PCS
Automatic Hot-sealing Card Packing Machine YHP-600 is designed for massively packing normally used cards such as telephone charging cards in an economic and fast way. Note: Pls watch the machine video by click the YOUTUBE address:https://www.youtube.com/watch?v=7hnEhCE-Muw
