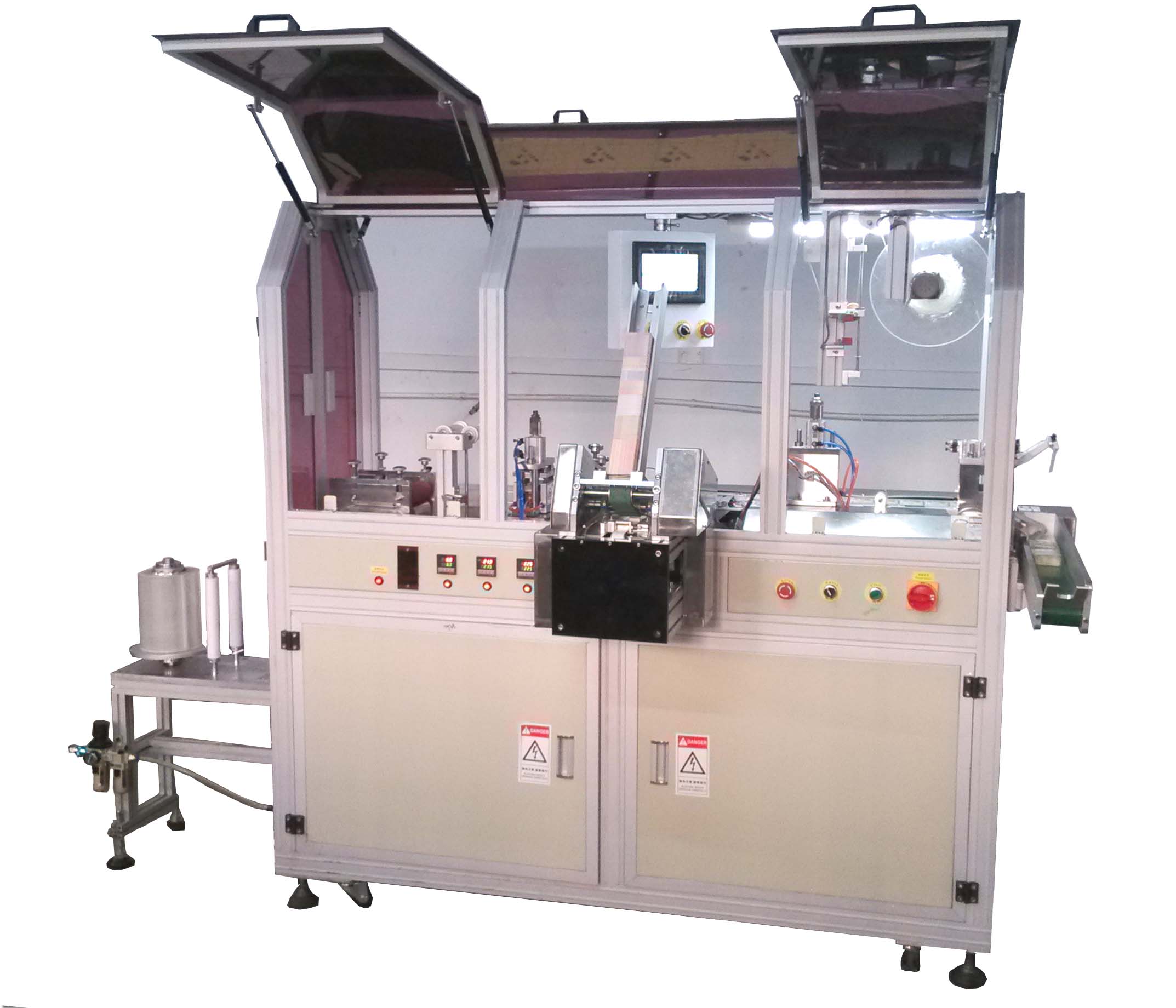

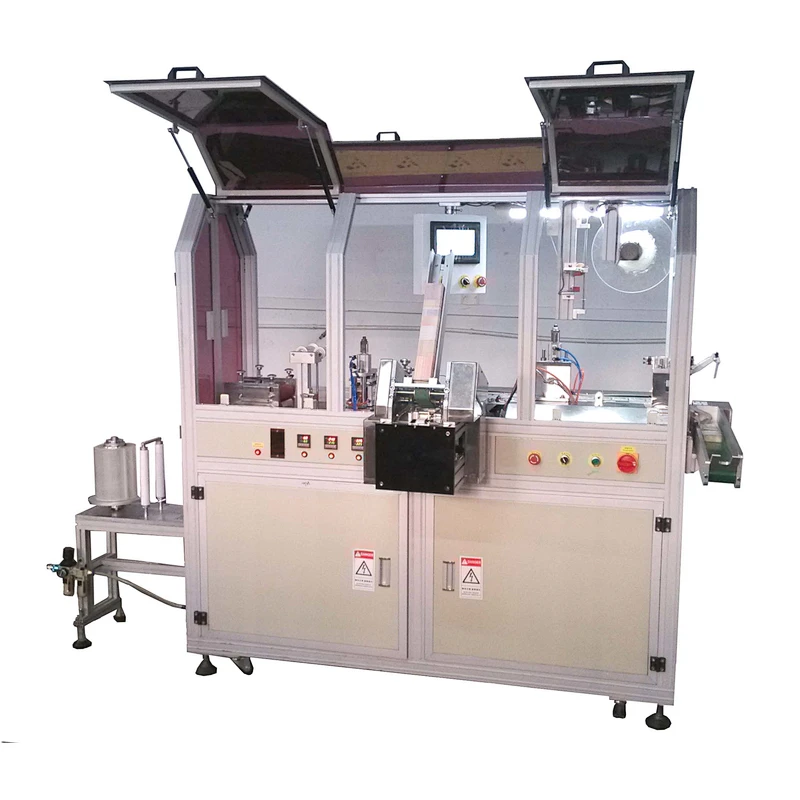

Automatic Hot-sealing Card Packing Machine/Card Packaging Machine/Card Wrapping Machine/Card Wrapper/Card Packer YHP-600
(card packaging machine, card wrapping machine, card packer, card wrapper, card machine, smart card machine)

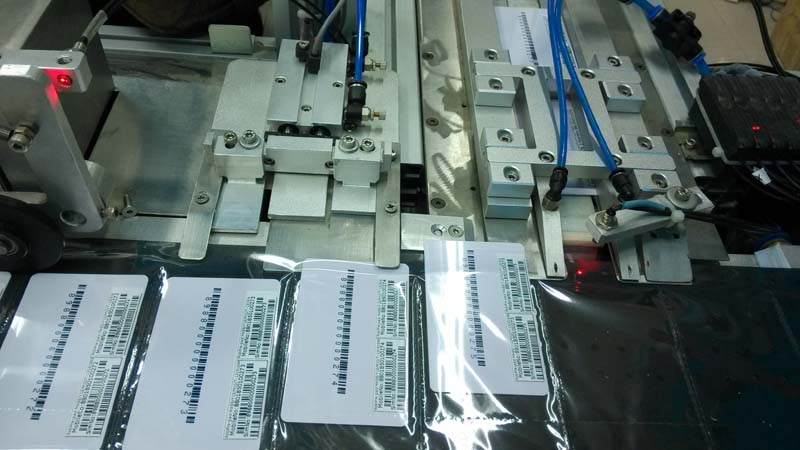

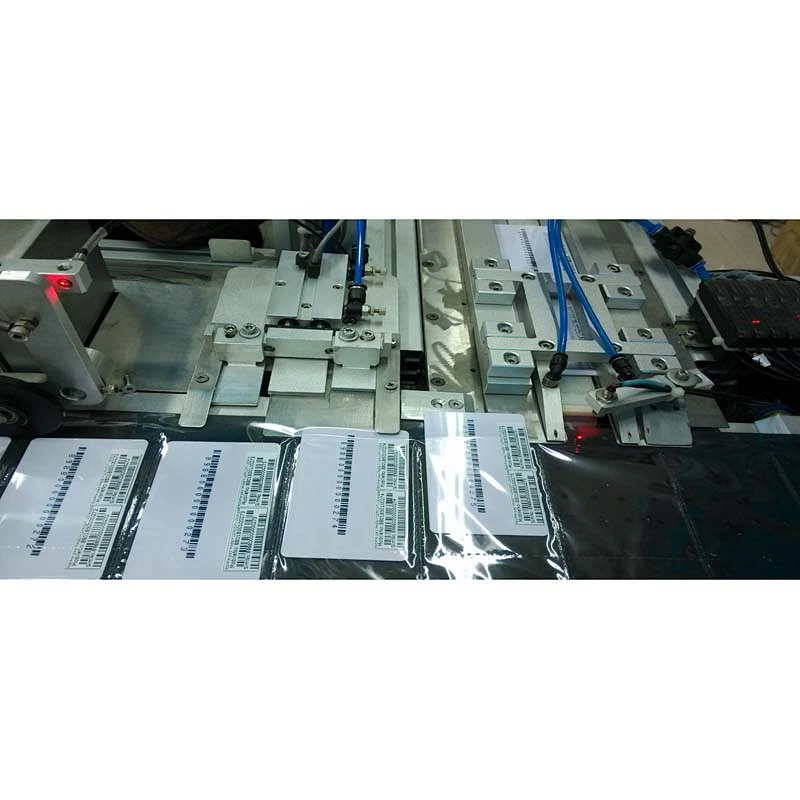

Automatic Hot-sealing Card Packing Machine YHP-600 is designed for massively packing normally used cards such as telephone charging cards in an economic and fast way. It applies hot-welding and high-pressure packing technology. Card Sending and film conveying is realized by stepping motor. It is automatically controlled by PLC with friendly human-machine interface. The welding line is straight line, and the zigzag lines cannot be realized in this machine.
Key functions:
1. automatic monitoring and alarming on card overlapping or card absence is available.
2. It can wrap all the paper or plastic cards with the thickness of over 0.25mm.
3. The minimum thickness of the available packing film is 0.025mm.

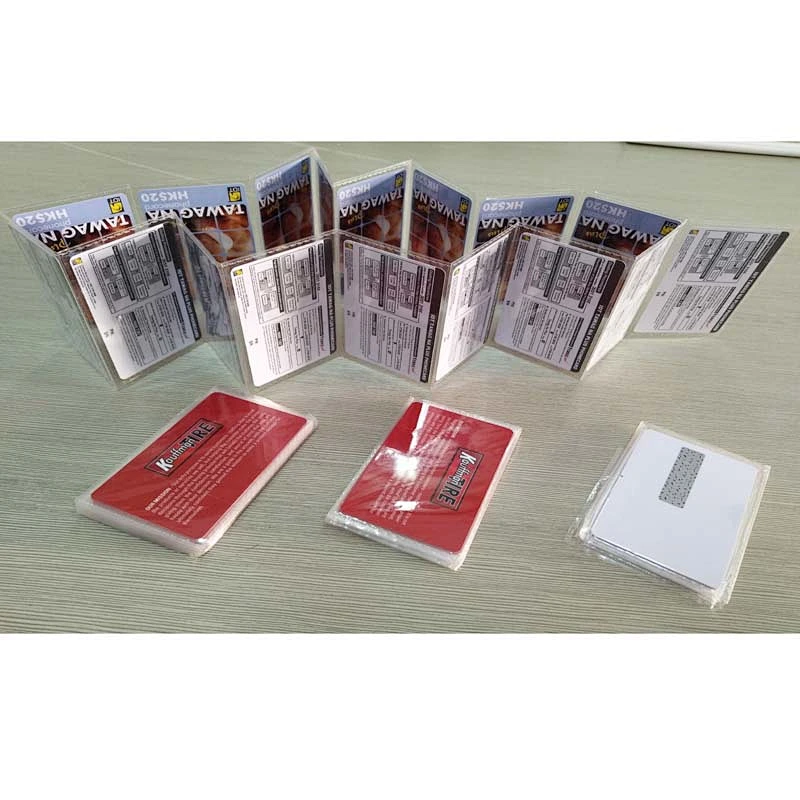

4. Single-Card Packing or multiple-card packing function are available, and packed chain card collection quantity can be set.
5. Welding With double mould is available, and replacement of welding mould is easy.
6. The size of the packing bag is adjustable.
7. Visual inspection system is optional, which can be used to check the card serial number or barcode.
Automatic Hot-sealing Card Packing Machine YHP-600 is also known as Card Packaging Machine, Card Wrapping Machine, Card Wrapper or Card Packer YHP-600.
Note: Pls watch the machine video by click the YOUTUBE address:
http://Note: Pls watch the machine video by click the YOUTUBE address:
Technical Parameter:
(card packaging machine, card wrapping machine, card packer, card wrapper, card machine, smart card machine)
Automatic Hot-sealing Card Packing Machine YHP-600 is designed for massively packing normally used cards such as telephone charging cards in an economic and fast way. It applies hot-welding and high-pressure packing technology. Card Sending and film conveying is realized by stepping motor. It is automatically controlled by PLC with friendly human-machine interface. The welding line is straight line, and the zigzag lines cannot be realized in this machine.
Key functions:
1. automatic monitoring and alarming on card overlapping or card absence is available.
2. It can wrap all the paper or plastic cards with the thickness of over 0.25mm.
3. The minimum thickness of the available packing film is 0.025mm.
4. Single-Card Packing or multiple-card packing function are available, and packed chain card collection quantity can be set.
5. Welding With double mould is available, and replacement of welding mould is easy.
6. The size of the packing bag is adjustable.
7. Visual inspection system is optional, which can be used to check the card serial number or barcode.
Automatic Hot-sealing Card Packing Machine YHP-600 is also known as Card Packaging Machine, Card Wrapping Machine, Card Wrapper or Card Packer YHP-600.
Note: Pls watch the machine video by click the YOUTUBE address:
http://Note: Pls watch the machine video by click the YOUTUBE address:
Technical Parameter:
| Power Supply | AC 380V/50 HZ | Control Method | PLC programming+ Step System |
| Total Power | 2.5KW | Operator | 1 person |
| Air Source | 6 kg/c㎡(Dry) | Dimension | L2650×W11000×H1800mm |
| Air Consumption | 50L/min | Packaging Material | BOPP film or similar 0.025mm~0.035 mm thick |
| Weight | 600Kg | Card size | 0.25-0.8mm thick CR80 cards |
| Speed | Max 6000 pcs /hr | Packaging Size | Folded film 105mm wide or single film roll 210mm wide. Film roll inner diameter 3 inches and external diameter less than 450 mm, |
Automatic Hot-sealing Card Packing Machine YHP-600 is designed for massively packing normally used cards such as telephone charging cards in an economic and fast way. It applies hot-welding and high-pressure packing technology. Card Sending and film conveying is realized by stepping motor. It is automatically controlled by PLC with friendly human-machine interface. The welding line is straight line, and the zigzag lines cannot be realized in this machine.
